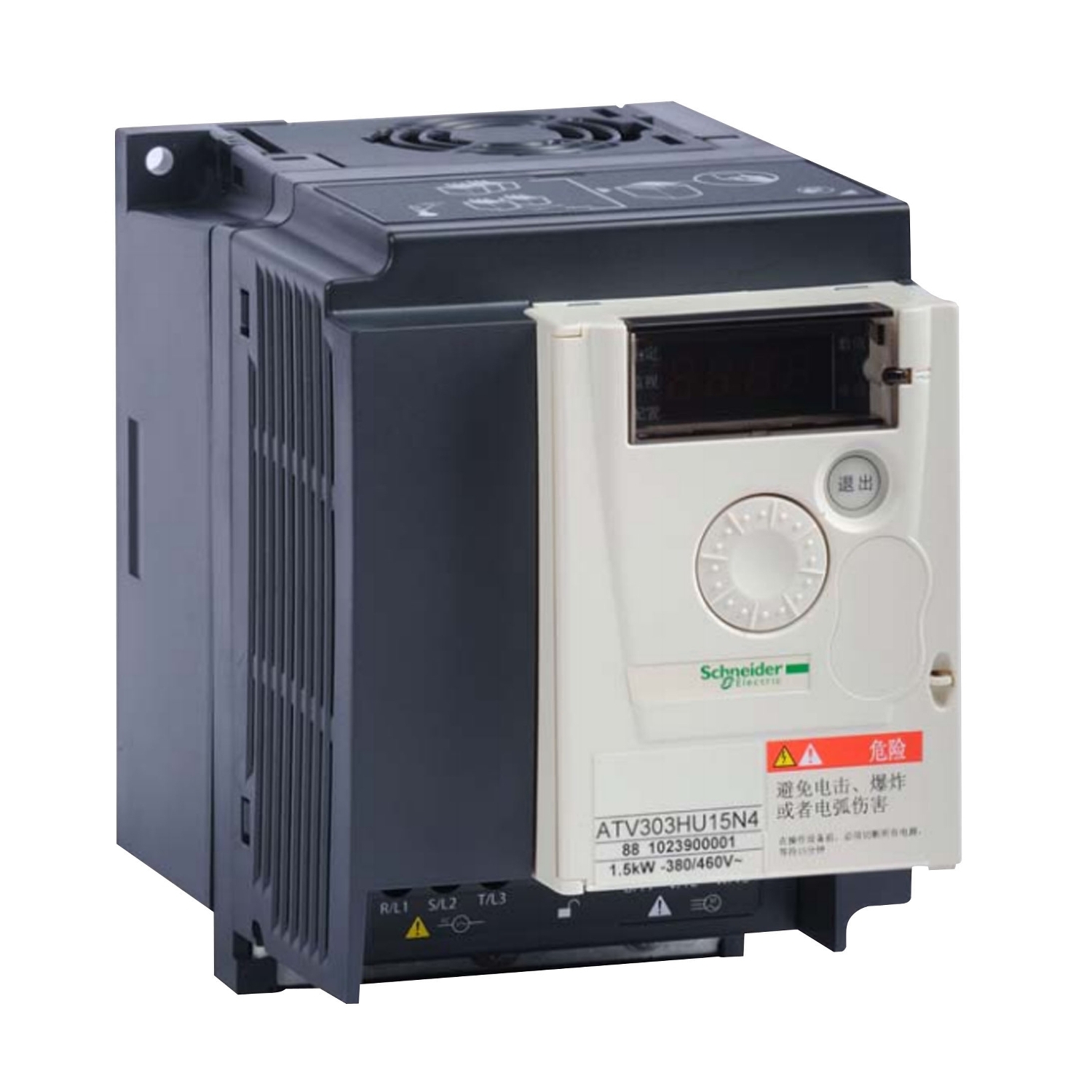

ATV303HU55N4E
- delivery time60 days
- Quantity
Product Details
Main
Complementary
Environment
| Range of product | Altivar 303 |
|---|---|
| Product or component type | Variable speed drive |
| Product destination | Asynchronous motors |
| Product specific application | Simple machine |
| Assembly style | With heat sink Enclosed |
| Component name | ATV303 |
| Motor power kW | 5.5 kW |
| [Us] rated supply voltage | 380...460 V - 15...10 % |
| Supply frequency | 50...60 Hz - 5...5 % |
| Network number of phases | 3 phases |
| Line current | 21.3 A at 380 V, Isc = 22 kA 14.3 A at 460 V |
| Apparent power | 11.4 kVA |
| Maximum transient current | 18.9 A for 60 s 25.2 A for 2 s |
| Power dissipation in W | 141.5 W at nominal load |
| Speed range | 1…20 |
| Asynchronous motor control profile | Quadratic voltage/frequency ratio Vector control with/without speed feedback Constant voltage/frequency ratio |
| Electrical connection | LI1...LI4 terminal 4 mm² L1, L2, L3, PA/+, PB, U, V, W terminal 4 mm² LO+, LO- terminal 4 mm² R1A, R1B, R1C terminal 4 mm² AO1 terminal 4 mm² |
| Supply | Internal supply for logic inputs: 19...30 V 100 mA, protection type: overload and short-circuit protection Internal supply for reference potentiometer (2.2 to 10 kOhm): 10...10.8 V 10 mA, protection type: overload and short-circuit protection |
| Communication port protocol | Modbus |
| IP degree of protection | IPx2 body |
| Option card | Communication card for Modbus TCP |
| Variant | Reinforced version |
|---|---|
| Supply voltage limits | 323…506 V |
| Network frequency | 47.5...63 Hz |
| Prospective line Isc | 22 kA |
| Continuous output current | 12.6 A at 4 kHz |
| Output frequency | 0.5…400 kHz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2...12 kHz adjustable |
| Transient overtorque | 170…200 % of nominal motor torque |
| Regulation loop | Frequency PI regulator |
| Motor slip compensation | Adjustable Suppressable Automatic whatever the load |
| Output voltage | <= power supply voltage |
| Tightening torque | LI1...LI4: 1.4 N.m L1, L2, L3, PA/+, PB, U, V, W: 1.4 N.m LO+, LO-: 1.4 N.m R1A, R1B, R1C: 1.4 N.m AO1: 1.4 N.m |
| insulation | Electrical between power and control |
| analogue input number | 1 |
| Analogue input type | AI1 configurable voltage or current 0...10 V, input voltage 30 V max, impedance: 30000 Ohm 20 ms 10 bits |
| Sampling duration | AI1: 20 ms analog LI1...LI4: 20 ms discrete |
| analogue output number | 1 |
| Analogue output type | AO1 voltage/current: 0...20 mA, impedance: 800 Ohm, resolution: 8 bits |
| Discrete input logic | Positive logic (LI1...LI4), < 13 V (state 1) |
| Discrete output number | 2 |
| Discrete output type | Relay: (R1A, R1B, R1C) 1 NO + 1 NC - 100000 cycles |
| Minimum switching current | R1A, R1B, R1C 5 mA at 24 V DC |
| Maximum switching current | R/L1, S/L2, T/L3: 2 A at 250 V AC inductive load, cos phi = 0.4 and L/R = 7 ms R/L1, S/L2, T/L3: 2 A at 30 V DC inductive load, cos phi = 0.4 and L/R = 7 ms R/L1, S/L2, T/L3: 5 A at 250 V AC resistive load, cos phi = 1 and L/R = 0 ms R/L1, S/L2, T/L3: 5 A at 30 V DC resistive load, cos phi = 1 and L/R = 0 ms |
| Discrete input number | 4 |
| Discrete input type | (LI1...LI4) programmable as logic input at 24 V, 0…100 mA for PLC, impedance: 3500 Ohm |
| Acceleration and deceleration ramps | Linear adjustable separately from 0.1 to 999.9 s |
| Braking to standstill | By DC injection |
| Protection type | Short-circuit between motor phases: drive Overload protection (thermal): drive Overvoltage protection: drive Undervoltage protection: drive Earth fault: drive |
| Insulation resistance | >= 500 mOhm 500 V DC for 1 minute |
| Local signalling | 1 LED (red) for drive voltage Four 7-segment display units for Modbus plus status |
| Time constant | 5 ms for reference change |
| Frequency resolution | Analog input: 0.1...100 Hz Display unit: 0.1 Hz |
| Connector type | 1 RJ45 for Modbus |
| Physical interface | RS485 multidrop serial link |
| Transmission frame | RTU |
| Transmission rate | 4800, 9600 or 19200 bps for Modbus |
| Number of addresses | 1…247 for Modbus |
| Number of drive | 31 for Modbus |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Height | 184 mm |
| Width | 140 mm |
| Depth | 151 mm |
| Net weight | 1.8 kg |
| Dielectric strength | 2410 V DC between earth and power terminals 3400 V AC between control and power terminals |
|---|---|
| Electromagnetic compatibility | 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 |
| Standards | IEC 61800-5-1 IEC 61800-3 |
| product certifications | NOM CSA C-Tick GOST UL DNV |
| Pollution degree | 2 |
| Protective treatment | TC |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 1.5 mm (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Relative humidity | 5…95 % without condensation conforming to IEC 60068-2-3 5…95 % without dripping water conforming to IEC 60068-2-3 |
| Ambient air temperature for storage | -25…70 °C |
| Ambient air temperature for operation | -10…55 °C without derating (with protective cover on top of the drive) -10…65 °C with current derating 1.5 % per °C (without protective cover on top of the drive) |
| Operating altitude | <= 1000 m without derating 1000...3000 m with current derating 1 % per 100 m |
