E8332USB_GH_G8 2x2 1A Usb Charger
- delivery time60 days
- Quantity
Product Details

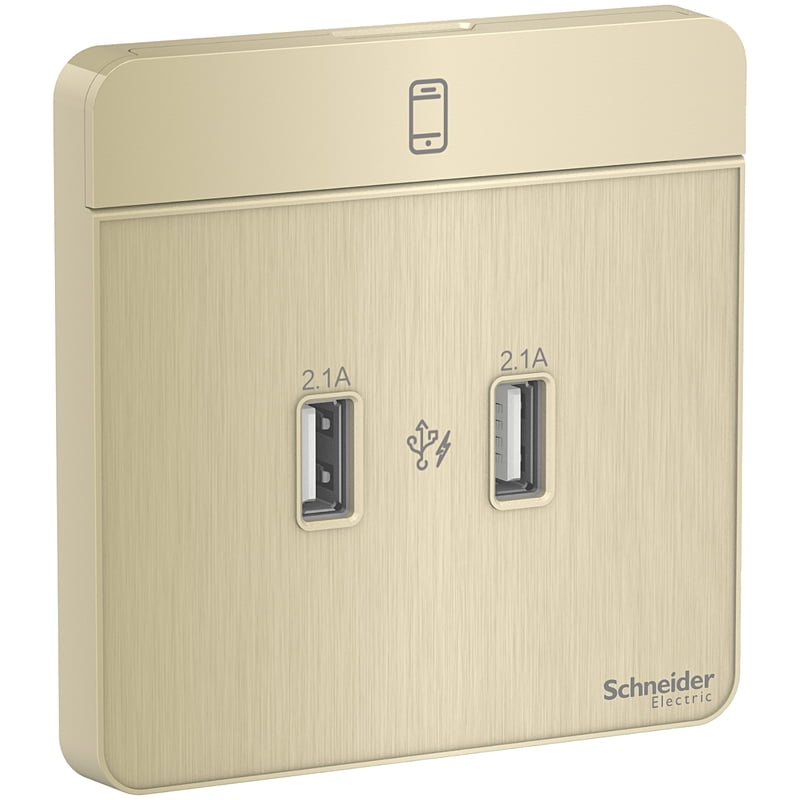

2 x 2.1A USB Charger with Mobile Holder, E8332USB_GH_G8
| Product or component type | USB charger |
|---|---|
| Integrated connection type | 2 USB type A 5 V DC, maximum load current: 2.1 A |
| Device mounting | Flush |
|---|---|
| Device presentation | Complete product |
| Colour tint | Metal gold hairline |
| Surface finish | Glossy |
| [Ue] rated operational voltage | 100/240 V AC 50/60 Hz |
| maximum load current with 2 outputs used simultaneously | 2.1 A |
| Material | PC (polycarbonate) |
| Connections - terminals | Screw terminals |
| Screwdriver shape | Phillips combined |
| Clamping connection capacity | 1.5...2.5 mm² for flexible cable(s) 1.5...2.5 mm² for rigid cable(s) |
| height | 86 mm |
| Width | 86 mm |
| Depth | 39 mm |
| Embedding depth | 29 mm |
| Net weight | 0.1 kg |
| standards | K60950 GB 4943.1 MS IEC 60950-1 CNS 14336 CNS 13438 IS 13252 |
|---|---|
| Electrical insulation class | Class II |
| IP degree of protection | IP20 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.4 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 105.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 19.0 cm |
| Package 2 Length | 19.5 cm |
| Package 2 Weight | 890.0 g |
