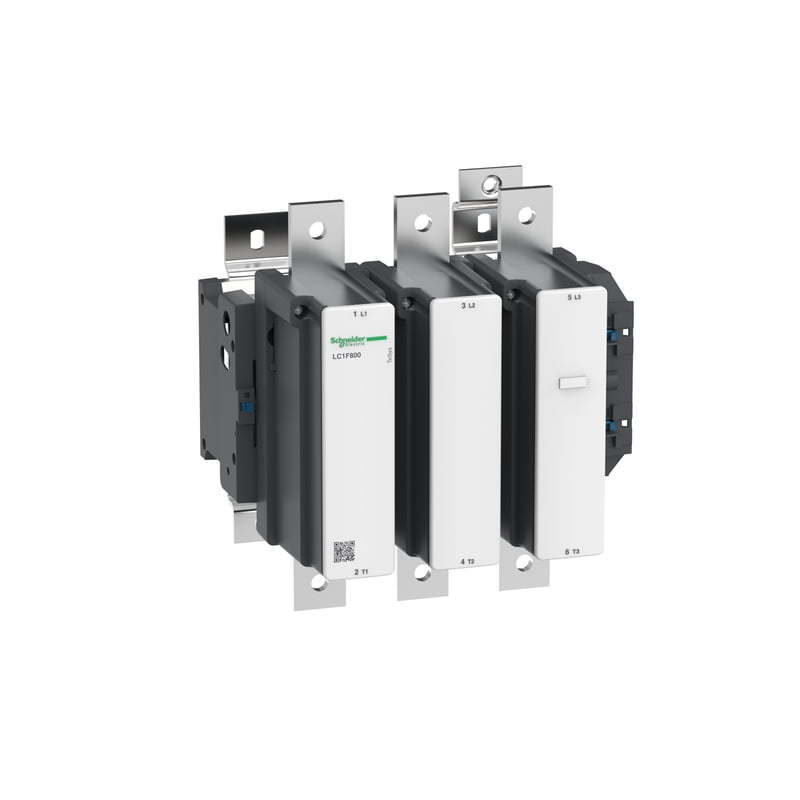

LC1F800
- delivery time60 days
- Quantity
Product Details
Main
Complementary
Environment
Packing Units
Contractual warranty
| Range | TeSys |
|---|---|
| Product name | TeSys F |
| Product or component type | Contactor |
| Device short name | LC1F |
| contactor application | Motor control Resistive load |
| utilisation category | AC-3 AC-1 AC-4 |
| Poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz <= 460 V DC |
| [Ie] rated operational current | 1000 A (at <40 °C) at <= 440 V AC AC-1 800 A (at <55 °C) at <= 440 V AC AC-3 |
| Motor power kW | 450 kW at 1000 V AC 50/60 Hz (AC-3) 450 kW at 500 V AC 50/60 Hz (AC-3) 475 kW at 660...690 V AC 50/60 Hz (AC-3) 110 kW at 400 V AC 50/60 Hz (AC-4) 450 kW at 380...400 V AC 50/60 Hz (AC-3) 450 kW at 415 V AC 50/60 Hz (AC-3) 450 kW at 440 V AC 50/60 Hz (AC-3) 250 kW at 220...240 V AC 50/60 Hz (AC-3) |
| [Uc] control circuit voltage | 110...400 V AC 40...400 Hz with LX1/LX9 coil 110...400 V DC with LX4 coil 100...250 V AC 50/60 Hz with LXE coil 100...380 V DC with LXE coil |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| Overvoltage category | III |
| [Ith] conventional free air thermal current | 1000 A (at 40 °C) |
| Irms rated making capacity | 8000 A AC conforming to IEC 60947-4-1 |
| Rated breaking capacity | 6400 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 2600 A 40 °C - 3 min 5500 A 40 °C - 10 s 4600 A 40 °C - 30 s 3600 A 40 °C - 1 min 1700 A 40 °C - 10 min |
| Associated fuse rating | 1000 A gG at <= 440 V 800 A aM at <= 440 V |
| Average impedance | 0.12 mOhm - Ith 1000 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 1500 V conforming to VDE 0110 group C |
| Power dissipation per pole | 120 W AC-1 77 W AC-3 |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil Drop-out: 0.3...0.5 Uc AC 40...400 Hz with LX1/LX9 coil Operational: 0.85...1.1 Uc DC with LX4 coil Drop-out: 0.3...0.5 Uc DC with LX4 coil Operational: 85...275 V AC 50/60 Hz with LXE coil Drop-out: 0...60 V AC 50/60 Hz with LXE coil Operational: 85...418 V DC with LXE coil Drop-out: 0...45 V DC with LXE coil |
| Heat dissipation | 25 W 2.2…5.5 W |
| Operating time | 60...80 ms closing for with LX1/LX9 coil 160...180 ms opening for with LX1/LX9 coil 60...80 ms closing for with LX4 coil 40...50 ms opening for with LX4 coil 40...80 ms closing for with LXE coil 6...54 ms opening for with LXE coil |
| mounting support | Plate |
| standards | IEC 60947-1 JIS C8201-4-1 EN 60947-1 IEC 60947-4-1 EN 60947-4-1 |
| product certifications | CB CSA LROS (Lloyds register of shipping) ABS CCC UL UKCA |
| Connections - terminals | Power circuit: bar 2 cable(s) - busbar cross section: 60 x 5 mm Power circuit: bolted connection Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²solid without cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm² Control circuit: screw clamp terminals 2 cable(s) 1…4 mm² |
| Tightening torque | Power circuit: 58 N.m Control circuit: 1.2 N.m |
| Mechanical durability | 5 Mcycles |
| Inrush power in VA | 1700 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil 1900 VA (at 20 °C)with LX4 coil 460…730 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil 500…680 VA cos phi 0.5 (at 20 °C)with LXE coil |
| Hold-in power consumption in VA | 12 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil 12 VA (at 20 °C)with LX4 coil 7…10 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil 4.0…5.5 VA cos phi 0.5 (at 20 °C)with LXE coil |
| Maximum operating rate | 600 cyc/h 55 °C |
| Compatibility code | LC1F |
| IP degree of protection | IP20 front face with shrouds conforming to IEC 60529 IP20 front face with shrouds conforming to VDE 0106 |
|---|---|
| Protective treatment | TH |
| Ambient air temperature for operation | -5…55 °C |
| Ambient air temperature for storage | -60…80 °C |
| Permissible ambient air temperature around the device | -5…55 °C |
| Operating altitude | 3000 m without derating |
| Mechanical robustness | Vibrations contactor open: 2 Gn, 5...300 Hz Vibrations contactor closed: 4 Gn, 5...300 Hz Shocks contactor open: 6 Gn for 1/2 sine wave (11 ms) Shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms) |
| height | 304 mm |
| Width | 309 mm |
| Depth | 255 mm |
| Net weight | 18.75 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 33.500 cm |
| Package 1 Width | 33.500 cm |
| Package 1 Length | 44.500 cm |
| Package 1 Weight | 17.195 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 77.280 kg |
| Warranty | 18 months |
|---|
