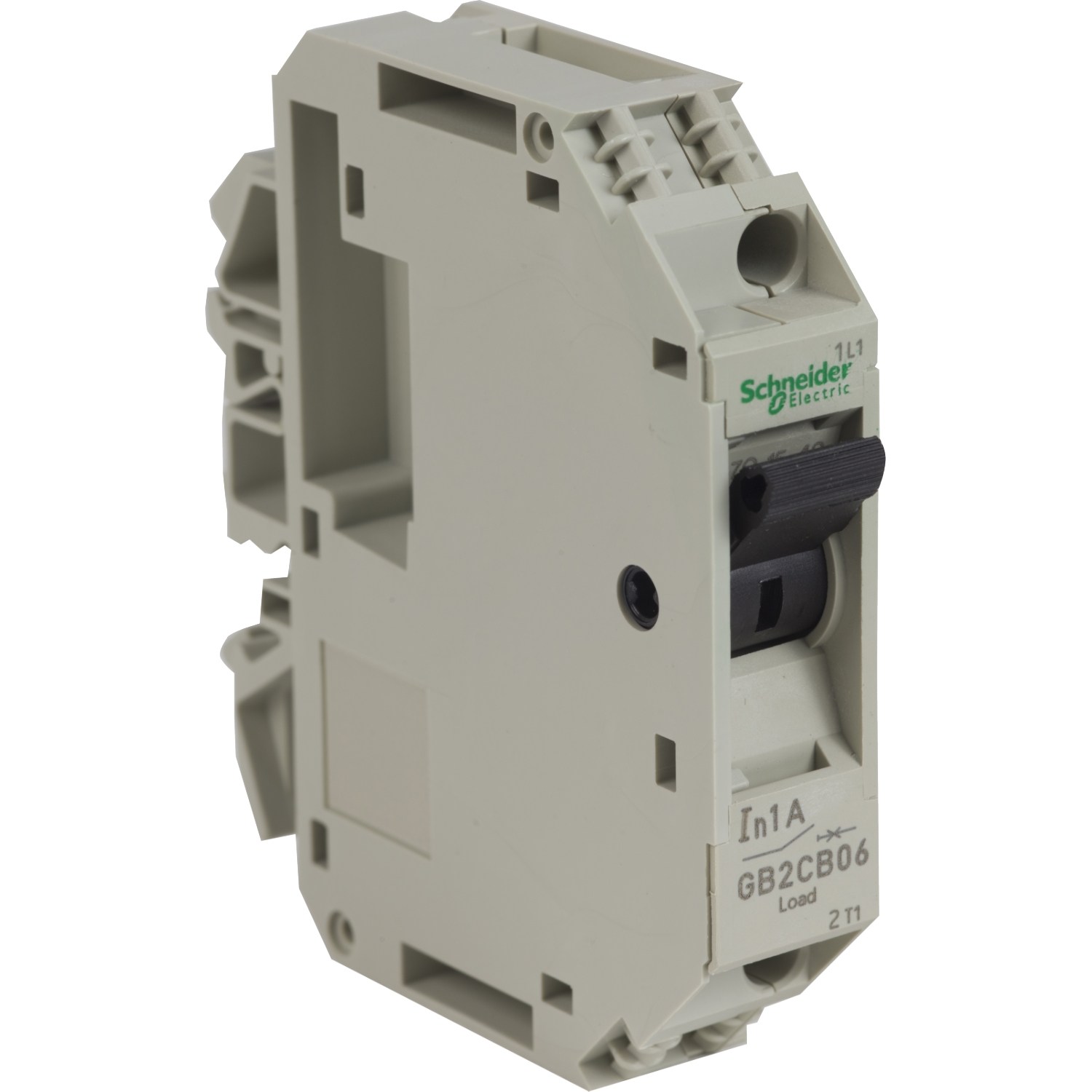

GB2CB06
- delivery time60 days
- Quantity
Range | TeSys |
---|---|
Product name | TeSys GB2 |
Device short name | GB2 |
Product or Component Type | Circuit breaker |
Device Application | Control |
Poles description | 1P |
Network type | AC/DC |
Utilisation category | Category A IEC 60947-2 DC-12 IEC 60947-5-1 DC-13 IEC 60947-5-1 |
Network frequency | 50/60 Hz IEC 60947-2 |
Breaking capacity | 50 kA Icu 110 V AC 50/60 Hz IEC 60947-2 50 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 1.5 kA Icu 24 V DC IEC 60947-2 1 kA Icu 48 V DC IEC 60947-2 |
[Ics] rated service short-circuit breaking capacity | 25 % 230/240 V AC 50/60 Hz IEC 60947-2 50 % 110 V AC 50/60 Hz IEC 60947-2 |
Trip unit technology | Thermal-magnetic |
Magnetic tripping current | 14 A |
Mounting Mode | By clips |
---|---|
Mounting Support | Plate Rail |
Mounting position | Horizontal Vertical |
Control Type | Toggle |
Line Rated Current | 1 A |
[Ue] rated operational voltage | 250 V AC 50/60 Hz IEC 60947-2 277 V AC 60 Hz CSA C22.2 No 235 277 V AC 60 Hz UL 1077 48 V DC |
[Uimp] rated impulse withstand voltage | 4 kV IEC 60947-2 |
Power dissipation per pole | 2 W |
Mechanical durability | 8000 cycles |
Electrical durability | 8000 cycles |
Connections - terminals | Connector 1 0.00…0.01 in² (0.75…6 mm²)solid without cable end connector 2 0.00…0.01 in² (0.75…4 mm²)solid without cable end connector 1 0.00…0.01 in² (0.75…4 mm²)flexible with cable end connector 2 0.00…0.00 in² (0.75…2.5 mm²)flexible with cable end |
Tightening torque | 10.62 lbf.in (1.2 N.m) connector |
Mechanical robustness | Shocks 22 Gn for 20 ms IEC 60068-2-27 Vibrations 5 Gn, 5...110 Hz IEC 60068-2-6 |
Quantity per Set | Set of 6 |
9 mm pitches | 2 |
Height | 2.91 in (74 mm) |
Width | 0.59 in (15 mm) |
Depth | 2.64 in (67 mm) |
standards | EN/IEC 60947-1 EN/IEC 60947-2 CSA C22.2 No 235 UL 1077 |
---|---|
Product Certifications | UL CSA |
Protective treatment | TC |
IP degree of protection | IP20 IEC 60529 |
Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) |
Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
Operating altitude | 9842.52 ft (3000 m) |
Category | 22631-TELE CIRCUIT BREAKER (GB2) |
---|---|
Discount Schedule | I |
GTIN | 3389110214666 |
Returnability | Yes |
Country of origin | FR |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 0.59 in (1.500 cm) |
Package 1 Width | 2.72 in (6.900 cm) |
Package 1 Length | 2.91 in (7.400 cm) |
Package 1 Weight | 1.80 oz (50.900 g) |
Unit Type of Package 2 | BB1 |
Number of Units in Package 2 | 6 |
Package 2 Height | 3.62 in (9.200 cm) |
Package 2 Width | 4.02 in (10.200 cm) |
Package 2 Length | 4.02 in (10.200 cm) |
Package 2 Weight | 11.71 oz (332.000 g) |
Unit Type of Package 3 | S02 |
Number of Units in Package 3 | 72 |
Package 3 Height | 5.91 in (15.000 cm) |
Package 3 Width | 11.81 in (30.000 cm) |
Package 3 Length | 15.75 in (40.000 cm) |
Package 3 Weight | 9.55 lb(US) (4.330 kg) |
Warranty | 18 months |
---|
