99154040G Sirco Mot At- 4x400A.
- delivery time60 days
- Quantity
Product Details

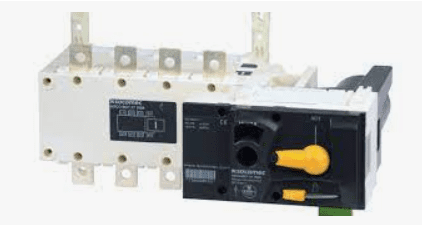

Remotely operated AC Load break switch SIRCO MOT AT 230VAC 4P 400A
CLASSIFICATION
| UNSPSC | 39122233 |
|---|---|
| ETIM Class | EC000216 |
| IGCC | 5290 |
COMMERCE
| Effective date | 2013-12-13 |
|---|---|
| Country of origin | FR |
| Discount Policy | 1CA60 |
| Discount Policy Label | MOTORISED SWITCHES |
| Length of the product unit | 0.17 |
| Width of the product unit | 0.395 |
| Depth of the product unit | 0.2445 |
| Weight | 9 |
ETIM - ELECTRICAL CHARACTERISTICS
| Max. rated operation voltage Ue AC [V] | 690 |
|---|---|
| Rated operating voltage [V] | 400..690 |
| Rated permanent current Iu [A] | 400 |
| Rated permanent current at AC-23, 400 V [A] | 400 |
| Rated permanent current at AC-21, 400 V [A] | 400 |
| Rated short-time withstand current lcw [kA] | 9 |
| Rated operation power at AC-23, 400 V [kW] | 220 |
| Switching power at 400 V [kW] | 220 |
| Conditioned rated short-circuit current Iq [kA] | 18 |
| Number of poles | 4 |
ETIM - MECHANICAL CHARACTERISTICS
| Suitable for floor mounting | No |
|---|---|
| Suitable for front mounting 4-hole | Yes |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | No |
| Suitable for intermediate mounting | Yes |
| Colour control element | Black |
| Degree of protection (IP), front side | IP20 |
ETIM - TECHNICAL FEATURES
| Version as main switch | Yes |
|---|---|
| Version as maintenance-/service switch | Yes |
| Version as safety switch | Yes |
| Version as emergency stop installation | No |
| Version as reversing switch | No |
| Number of switches | 1 |
| Number of auxiliary contacts as change-over contact | 2 |
| Motor drive optional | No |
| Motor drive integrated | Yes |
| Voltage release optional | No |
| Device construction | Built-in device fixed built-in technique |
| Type of control element | Long turning handle |
| Interlockable | Yes |
| Type of electrical connection of main circuit | Bolt connection |
LOGISTICS
| GTIN/EAN | 3596032779580 |
|---|---|
| Customs number | 8536508090 |
| Price unit | PC |
| Weight of the packing unit | 9 |
| Length of the packing unit | 0.36 |
| Width of the packing unit | 0.36 |
| Depth of the packing unit | 0.47 |
NORMS
| Conformity to standards | IEC |
|---|
TECHNICAL CHARACTERISTICS
| Control operator | Motorized |
|---|---|
| Number of poles | 4 |
| Rated voltage | 690 VAC - 440 VDC |
| Rated current | 400 |
| Type | Front operation |
| Frame size | B4 |
