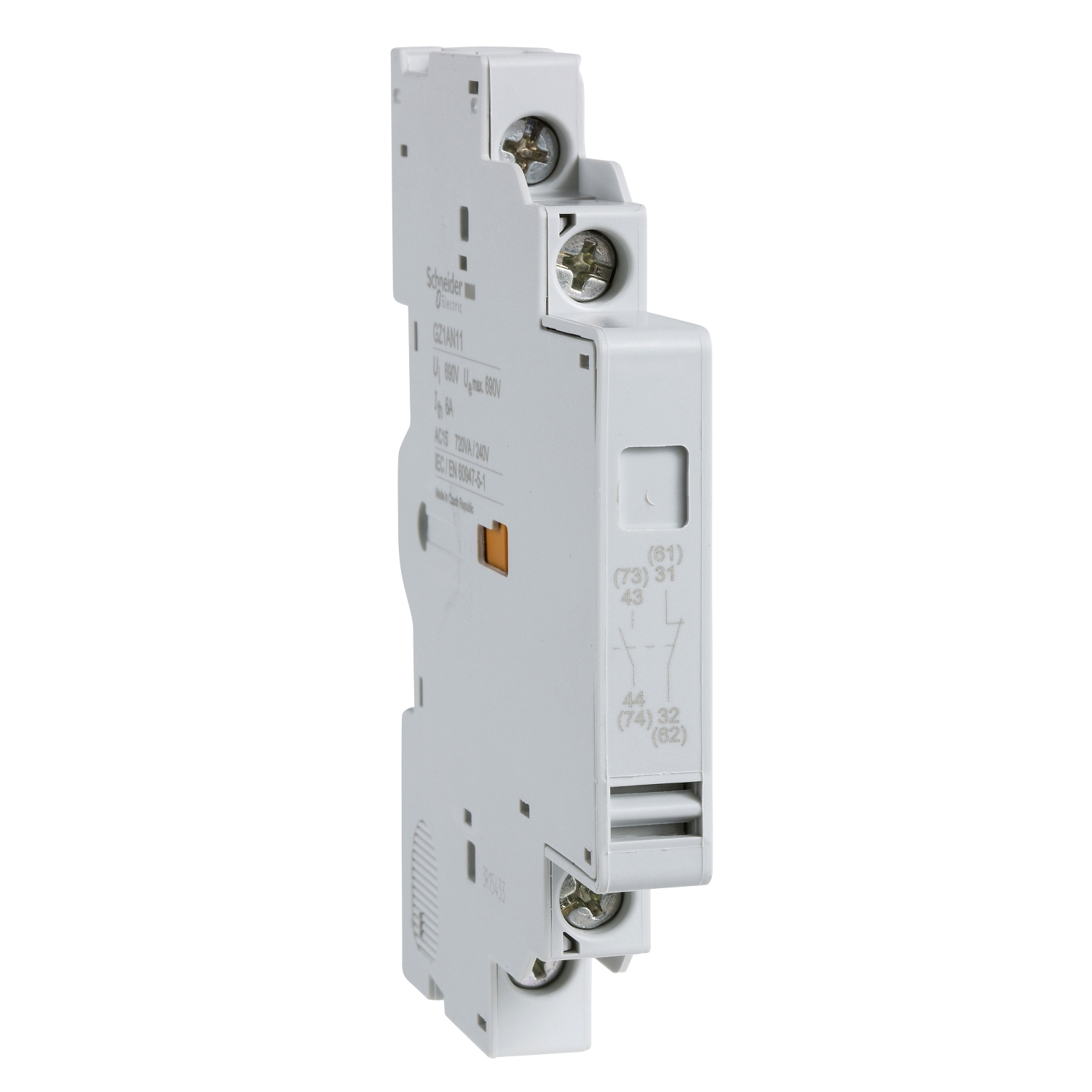

GZ1AN11
- delivery time60 days
- Quantity
Product Details
Main
Complementary
Packing Units
| Range | EasyPact |
|---|---|
| Device short name | GZ1AN |
| Product or component type | Auxiliary contact block |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1…2.5 mm²solid Screw clamp terminals 2 cable(s) 1…2.5 mm²solid Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.75…1.5 mm²flexible with cable end Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end |
| Range compatibility | EasyPact (EasyPact TVS) GZ1E circuit breaker |
|---|---|
| Mounting location | Left side |
| Auxiliary contacts operation | Instantaneous 1 NO + 1 NC |
| Pole contact composition | 1 NO + 1 NC |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-1 |
| [Ue] rated operational voltage | 48...690 V AC 24...240 V DC |
| [Ith] conventional free air thermal current | 6 A |
| Protection type | GG fuse 10 A |
| Mechanical durability | 100000 cycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Rated operational power in VA | 300 VA at 48 V AC-15 - electrical durability: 70000 cycles 400 VA at 690 V AC-15 - electrical durability: 70000 cycles 500 VA at 110…127 V AC-15 - electrical durability: 70000 cycles 500 VA at 500 V AC-15 - electrical durability: 70000 cycles 650 VA at 440 V AC-15 - electrical durability: 70000 cycles 720 VA at 230…240 V AC-15 - electrical durability: 70000 cycles 850 VA at 380…415 V AC-15 - electrical durability: 70000 cycles |
| Rated operational power in W | 120 W at 240 V DC-13 - electrical durability: 70000 cycles 140 W at 110 V DC-13 - electrical durability: 70000 cycles 140 W at 24 V DC-13 - electrical durability: 70000 cycles 180 W at 60 V DC-13 - electrical durability: 70000 cycles 240 W at 48 V DC-13 - electrical durability: 70000 cycles |
| Height | 89 mm |
| Width | 9.3 mm |
| Depth | 66 mm |
| Net weight | 0.05 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.500 cm |
| Package 1 Width | 6.500 cm |
| Package 1 Length | 8.500 cm |
| Package 1 Weight | 43.300 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.500 cm |
| Package 2 Width | 9.500 cm |
| Package 2 Length | 15.000 cm |
| Package 2 Weight | 488.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 3.156 kg |
