AZ5DE010
- delivery time60 days
- Quantity
Product Details
Main
Complementary
Environment
Packing Units
Contractual warranty
| Range of product | Linergy |
|---|---|

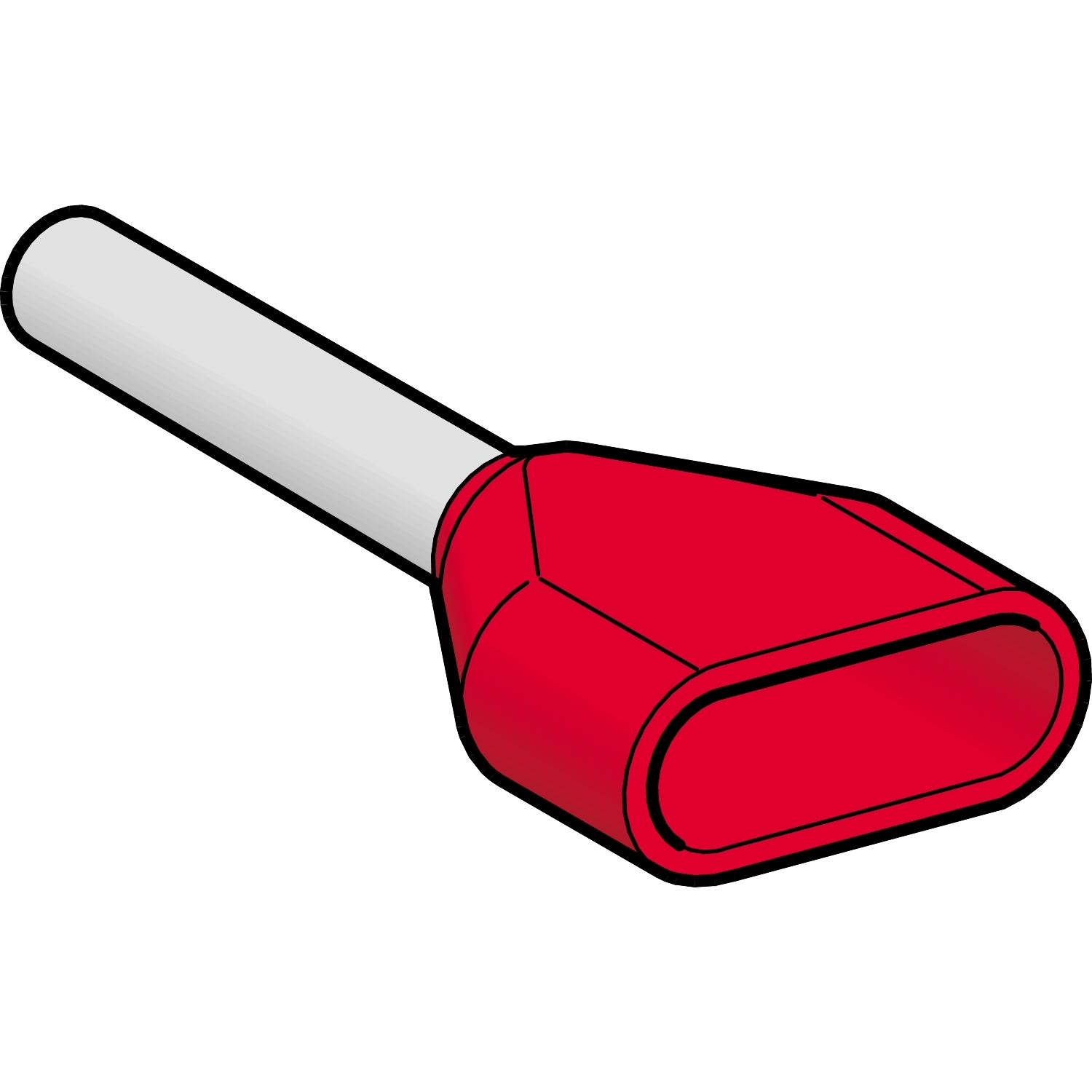

| Product or component type | Cable end |
| cable end size | Medium |
| standards | NF C 63-023 |
| Type of packing | Dispenser pack |
| Quantity per set | 5 sets of 100 |
| Cable cross section | 1 mm² |
| Cable end type | Twin conductor |
|---|---|
| Additional information | Without marker tag holder |
| Colour | Red |
| bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 2 |
| AWG gauge | AWG 18 |
| bezel size | Ø 3.4 x 5.4 mm |
| Tube diameter | 2.25 mm |
| Length | 15 mm |
| Tube length | 8 mm |
| Net weight | 0.14 kg |
| product certifications | CCSAus |
|---|---|
| Ambient air temperature for operation | -20…105 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.4 cm |
| Package 1 Width | 0.4 cm |
| Package 1 Length | 1.4 cm |
| Package 1 Weight | 1 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 500 |
| Package 2 Height | 13.1 cm |
| Package 2 Width | 7 cm |
| Package 2 Length | 12.5 cm |
| Package 2 Weight | 139 g |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 20000 |
| Package 3 Height | 30 cm |
| Package 3 Width | 40 cm |
| Package 3 Length | 60 cm |
| Package 3 Weight | 20 kg |
| Warranty | 18 months |
|---|
