HMIST6200
- delivery time60 days
- Quantity
Product Details
Main
Complementary
Environment
Ordering and shipping details
Packing Units
| Range of Product | Harmony ST6 |
|---|---|

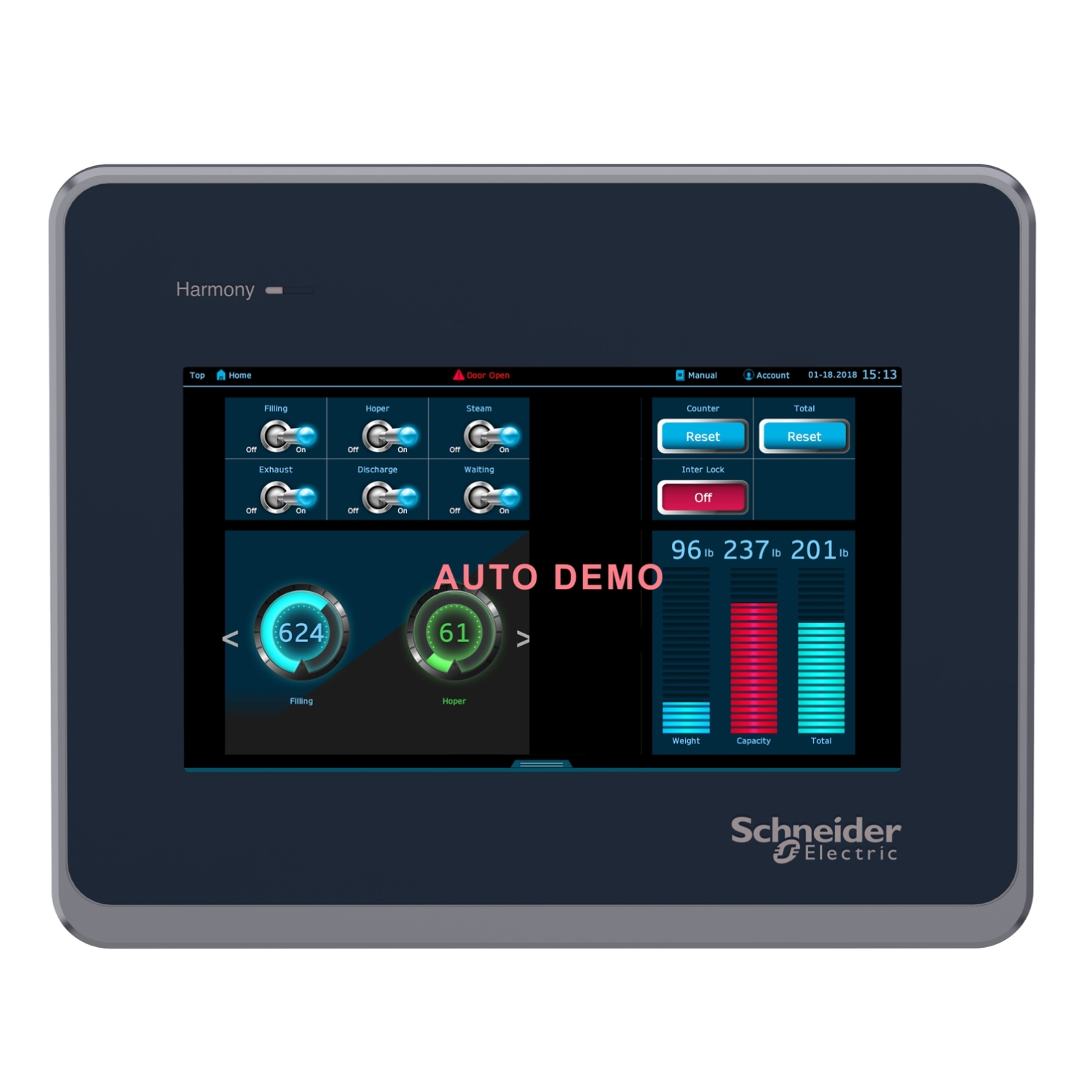

| Product or Component Type | Touch panel screen |
| Processor name | ARM Cortex-A8 |
| Display size | 4 inch |
|---|---|
| Display Type | Colour TFT LCD |
| Display colour | 16 million colours |
| Display Resolution | 480 x 272 pixels |
| Touch panel | Single touch analogue resistive |
| Backlight lifespan | 50000 hours white |
| Brightness | 16 levels |
| character font | ASCII ASCII (European characters) Chinese (simplified Chinese) Japanese (ANK, Kanji) Katakana Korean Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC +/- 20 %) |
| Inrush current | 30 A |
| Local signalling | Status LED green, steady offline Status LED green, steady operating Status LED green, flashing operating Status LED green, faded stand-by Status LED orange, flashing software starting up Status LED red, steady power supply (ON) Status LED red, flashing operating Status LED red, off power supply (OFF) |
| Power Consumption in W | 6.9 W |
| Number of pages | 200 application pages |
| Software package | EcoStruxure Operator Terminal Expert |
| Processor frequency | 800 MHz |
| Port Ethernet | 10/100BASE |
| Memory description | 512 MB device memory 128 MB user data memory 512 KB backup memory |
| Integrated connection type | 1 COM1 serial link - 1 SUB-D 9-pin female - RS232C/RS485 2400...115200 bps)bottom COM1 serial link 2400...187500 bps)back 1 USB 2.0 type Aback 1 USB 2.0 type micro Bbottom 1 Ethernet - female RJ45 - RS485 |
| Supply | External supply |
| Realtime clock | Built-in 0...50 °C Built-in 10...90 % RH |
| Downloadable protocols | Modbus Uni-TE Third party protocols |
| Product brand | Schneider Electric Modicon Mitsubishi Melsec Omron Sysmac Rockwell Automation Allen-Bradley Siemens Simatic |
| Fixing mode | By 2 screws 1.6...5 mm thick panel UL 61010-2-201 By 2 screws EN 61131-2 By 2 screws IEC 61000-6-2 |
| Enclosure Material | PC |
| Front material | Aluminium |
| Marking | CE |
| Cut-out dimensions | 118.5 x 92.5 mm panel cut dimension |
| Height | 4.27 in (108.5 mm) |
| Width | 5.30 in (134.5 mm) |
| Depth | 1.69 in (43 mm) |
| Net Weight | 0.88 lb(US) (0.4 kg) |
| Immunity to microbreaks | 2 ms |
|---|---|
| Standards | EN 61000-6-4 EN 61000-6-2 EN 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
| Product Certifications | CSA CE UKCA |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) |
| IP degree of protection | IP20 IEC 61131-2 rear panel) IP65 IEC 61131-2 front panel) |
| NEMA degree of protection | NEMA 4 front panel (indoor use) NEMA 13 front panel (in enclosure) |
| Shock resistance | 147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))EN/IEC 61131-2 |
| Vibration resistance | +/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2 9.8 m/s² 9…150 Hz) |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (signal ports) Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3 Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
| Category | 22565-HARMONY BASIC HMI |
|---|---|
| Discount Schedule | MC2 |
| GTIN | 3606489523374 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.19 in (8.100 cm) |
| Package 1 Width | 5.39 in (13.700 cm) |
| Package 1 Length | 7.32 in (18.600 cm) |
| Package 1 Weight | 15.91 oz (451.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 12.93 lb(US) (5.864 kg) |
