HMIST0512

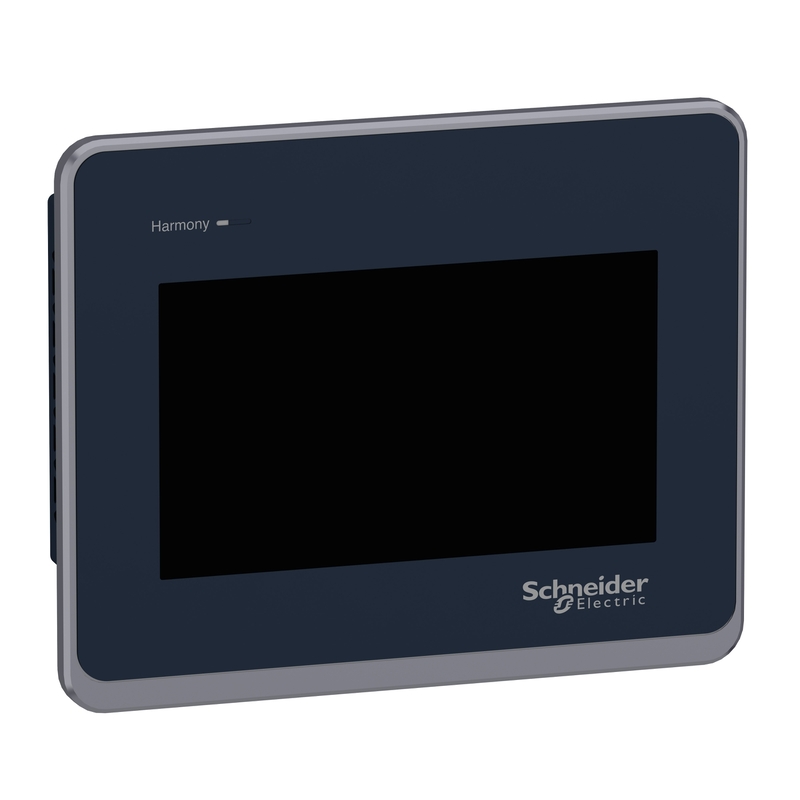

HMIST0512 Touch Screen Glass Panel 97*50mm


  • delivery time
    60 days
  • Quantity
Price
Rs.0.00
Add to Cart
HMIST0512
Product Details
Main
Range of productHarmony STO & STU
Product or component typeTouch panel screen
Software designationVijeo Designer
Operating systemHarmony
Processor nameCPU RISC
Complementary
Display size3.4 inch
Display typeBacklit monochrome STN LCD
background colourWhite, pink and red
Display resolution200 x 80 pixels
Touch panelAnalogue
Backlight lifespan10000 hours with red
50000 hours with pink
50000 hours with white
Brightness8 levels
Contrast16 levels via touch panel
character fontJapanese (ANK, Kanji)
Korean
ASCII
Taiwanese (traditional Chinese)
Chinese (simplified Chinese)
[Us] rated supply voltage24 V DC +/- 20 %
Inrush current30 A
Local signalling1 LED (green) for normal operation
Power consumption in W5 W
Number of pagesLimited by internal memory capacity
Processor frequency333 MHz
Memory descriptionApplication memory 16 MB
Back up of data 128 kB
Integrated connection type1 USB 2.0 type mini B
1 USB 2.0 type A
power supply - removable screw terminal block
COM1 serial link - female RJ45 - RS232C/RS485 (rate: <= 115.2 kbits/s)
SupplyExternal source
Realtime clockAccess to the PLC real-time clock
Downloadable protocolsThird party protocols
Uni-TE
Modbus
Fixing modeBy 2 spring clips, mounting on 1.6...5 mm thick panel
Enclosure materialPPT
MarkingCE
Height77.5 mm
Width116.5 mm
Depth36.5 mm
Environment
Immunity to microbreaks3 ms
StandardsFCC Class A
UL 1604
UL 508
IEC 61000-6-2
EN 61131-2
product certificationsUL Class 1 Division 2 T4A
UL Class 1 Division 2 T5
C-Tick
cULus
GOST
CE
KCC
Ambient air temperature for operation0…50 °C
Ambient air temperature for storage-20…60 °C
Relative humidity0…90 % without condensation
Operating altitude<= 2000 m
IP degree of protectionIP20 (rear panel) conforming to IEC 60529
IP65 (front panel) conforming to IEC 60529
NEMA degree of protectionNEMA 4X front panel (indoor use)
Shock resistance15 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance+/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6
1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6
Electromagnetic compatibilityResistance to radiated electromagnetic fields - test level: 10 V/m conforming to IEC 61000-4-3
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height9.0 cm
Package 1 Width13.0 cm
Package 1 Length18.5 cm
Package 1 Weight360.0 g
Contractual warranty
Warranty18 months
