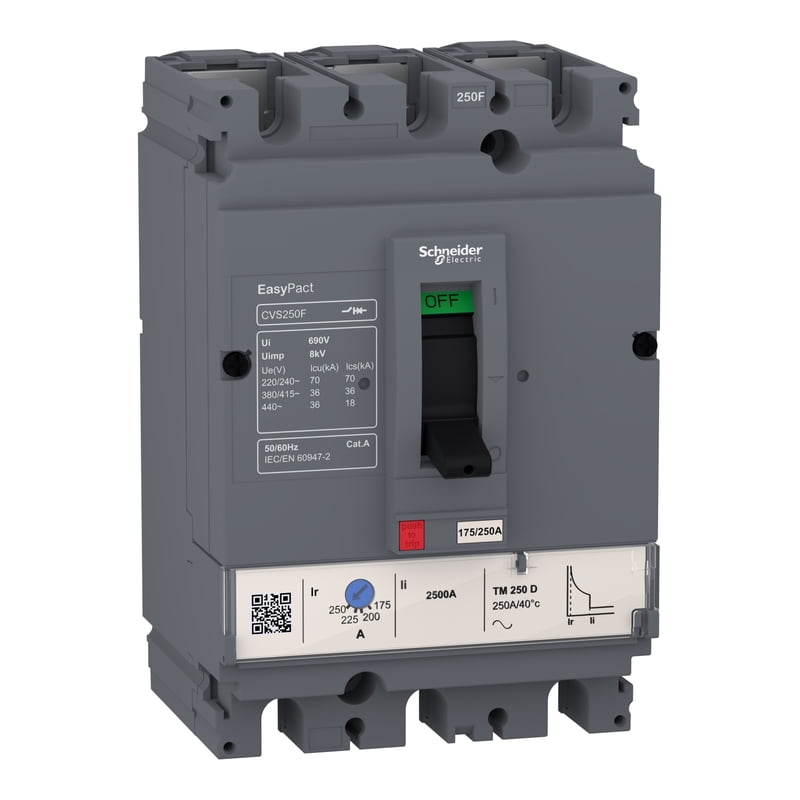

LV510334
- Quantity
Range | EasyPact |
---|---|
Product name | EasyPact CVS |
Device short name | CVS100F |
Product or component type | Circuit breaker |
Device application | Distribution |
Poles description | 3P |
Protected poles description | 3D |
Earth leakage protection (Vigi add on) | Without |
[In] rated current | 50 A at 40 °C |
Network type | AC |
utilisation category | Category A |
[Icu] Breaking capacity | 36 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
Trip unit name | TM-D |
Trip unit technology | Thermal-magnetic |
Trip unit rating | 50 A at 40 °C |
Protection type | Short-circuit protection (magnetic) Overload protection (thermal) |
[Uimp] rated impulse withstand voltage | 8 kV conforming to EN/IEC 60947-2 |
---|---|
Network frequency | 50/60 Hz |
Breaking capacity code | F |
[Ics] rated service breaking capacity | 18 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 70 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
Mechanical durability | 30000 cycles |
Electrical durability | 12000 cycles 415 V In conforming to IEC 60947-2 |
Control type | Toggle |
Thermal protection adjustment range | 35…50 A |
Long time pick-up adjustment type Ir | Adjustable |
long time pick-up adjustment range | 0.7...1 x In |
Long time delay adjustment type | Fixed |
instantaneous pick-up adjustment type Ii | Fixed |
instantaneous pick-up adjustment range | 500 A |
Contact position indicator | Yes |
Mounting mode | Fixed |
Mounting support | Backplate |
Upside connection | Front |
downside connection | Front |
Connections - terminals | Screw connection |
Connection pitch | 35 mm |
Compatibility code | CVS100 |
Width | 105 mm |
Depth | 86 mm |
Height | 161 mm |
Net weight | 1.8 kg |
Standards | IEC 60947-2 EN 60947-2 |
---|---|
product certifications | GOST IEC |
Electrical shock protection class | Class II |
Pollution degree | 3 conforming to IEC 60664-1 |
IP degree of protection | IP40 |
Ambient air temperature for operation | -25…70 °C |
Ambient air temperature for storage | -50…85 °C |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 11.0 cm |
Package 1 Width | 13.5 cm |
Package 1 Length | 19.0 cm |
Package 1 Weight | 1.674 kg |
Unit Type of Package 2 | S03 |
Number of Units in Package 2 | 6 |
Package 2 Height | 30.0 cm |
Package 2 Width | 30.0 cm |
Package 2 Length | 40.0 cm |
Package 2 Weight | 10.464 kg |
Warranty | 18 months |
---|
