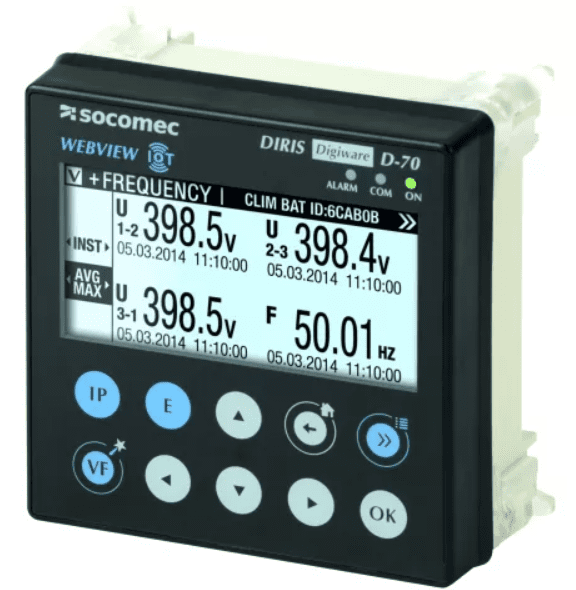

48290203G Diris D-70 Aff Digiware+Webser
- delivery time60 days
- Quantity
Product Details
Multipoint Display for Diris Digiware System, Ethernet Output, Embedded Web Server
CLASSIFICATION
| UNSPSC | 83101808 |
|---|---|
| ETIM Class | EC001428 |
| IGCC | 6042 |
COMMERCE
| Effective date | 2019-04-01 |
|---|---|
| Country of origin | FR |
| Discount Policy | 1EN50 |
| Discount Policy Label | DISPLAYS |
ETIM - ELECTRICAL CHARACTERISTICS
| Supply voltage DC [V] | 0..24 |
|---|---|
| Voltage type (supply voltage) | DC |
ETIM - MECHANICAL CHARACTERISTICS
| Colour display | No |
|---|---|
| Number of colours of the display | 2 |
| Degree of protection (IP), front side | IP40 |
| Operating temperature [°C] | -10..70 |
| Rail mounting possible | Yes |
| Wall mounting/direct mounting | Yes |
| Front built-in possible | Yes |
| Rack-assembly possible | No |
| Width of the front [mm] | 18 |
| Height of the front [mm] | 96 |
| Built-in depth [mm] | 27 |
ETIM - TECHNICAL FEATURES
| With HW-interface video signal, analogue | No |
|---|---|
| With HW-interface digital video signal | No |
| With HW-interface USB | Yes |
| With HW-interface PS2 | No |
| Type of display | LCD |
| Number of grey-scales/blue-scales of display | 10 |
| Screen diagonal [inch] | 3.54 |
| Number of pixels, horizontal | 350 |
| Number of pixels, vertical | 160 |
| With On Screen Display | Yes |
| Integrated keyboard | Yes |
| Number of function buttons | 10 |
| With touch screen | No |
| Mouse-cursor control integrated | No |
| Suitable for safety functions | No |
LOGISTICS
| GTIN/EAN | 3596033024351 |
|---|---|
| Customs number | 8528590090 |
| Price unit | PC |
| Weight of the packing unit | 0.278 |
| Length of the packing unit | 0.09 |
| Width of the packing unit | 0.12 |
| Depth of the packing unit | 0.11 |
NORMS
| Conformity to standards |
|
|---|
TECHNICAL CHARACTERISTICS
| Communication ports | RS485 - Ethernet - Digiware - USB |
|---|---|
| Communication protocols | Modbus RTU - Modbus TCP - SNMP v1, v2, v3 & Traps - BACnet IP - HTTP(S) - FTP(S) - SMTP(S) |
| Model | D-70 |
| Size | 96x96 mm |
| Type | Display and gateway interface for DIRIS Digiware system |
