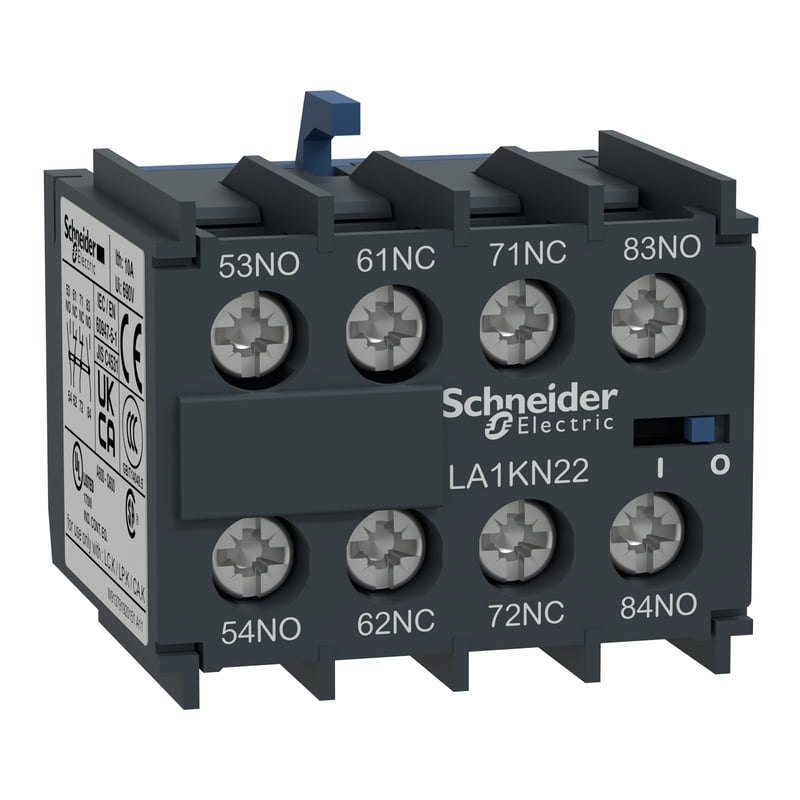

LA1KN13
- delivery time60 days
- Quantity
Range | TeSys |
---|---|
Product name | TeSys K |
Product or Component Type | Auxiliary contact block |
Device short name | LA1 |
Range compatibility | TeSys K LC1K TeSys K CA2K TeSys K CA3K |
Mounting Location | Front |
Pole contact composition | 1 NO + 3 NC |
Contacts operation | Instantaneous |
[Ue] rated operational voltage | 690 V AC 25...400 Hz |
[Ui] rated insulation voltage | 690 V IEC 60947-5-1 600 V UL 60947-5-1 600 V CSA C22.2 No 60947-5-1 |
[Ith] conventional free air thermal current | 10 A 122 °F (50 °C) |
Standards | EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 JIS C8201-5-1 |
Product Certifications | CB Scheme CCC UL CSA CE UKCA |
Irms rated making capacity | 110 A <= 690 V AC IEC 60947 |
---|---|
Permissible short-time rating | 80 A 1 s 60 A 500 ms 110 A 100 ms |
Associated fuse rating | 10 A gG <= 690 V IEC 60947 |
Minimum switching current | 5 mA |
Minimum switching voltage | 17 V |
Non overlap distance | 0.02 in (0.5 mm) |
Insulation resistance | > 10 MOhm |
Connections - terminals | Screw clamp terminals 1 0.00…0.00 in² (0.34…1.5 mm²)flexible with cable end screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible without cable end screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)rigid screw clamp terminals 2 0.00…0.00 in² (0.34…1.5 mm²)flexible with cable end screw clamp terminals 2 0.00…0.01 in² (0.75…4 mm²)flexible without cable end screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)rigid |
Tightening torque | 11.51 lbf.in (1.3 N.m) Philips No 2 11.51 lbf.in (1.3 N.m) pozidriv No 2 |
Height | 1.18 in (30 mm) |
Width | 1.50 in (38 mm) |
Depth | 1.38 in (35 mm) |
Net Weight | 0.10 lb(US) (0.045 kg) |
Environmental characteristic | Normal environment |
---|---|
IP degree of protection | IP20 conforming to IEC 60529 |
Protective treatment | TC IEC 60068 |
Ambient Air Temperature for Storage | -58…176 °F (-50…80 °C) |
Ambient Air Temperature for Operation | -13…122 °F (-25…50 °C) |
Operating altitude | 6561.68 ft (2000 m) |
Category | 22341-CONTACTOR,D,K,&F ACCESS |
---|---|
Discount Schedule | I12 |
GTIN | 3389110500134 |
Returnability | Yes |
Country of origin | ID |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 1.38 in (3.5 cm) |
Package 1 Width | 1.18 in (3 cm) |
Package 1 Length | 1.54 in (3.9 cm) |
Package 1 Weight | 1.41 oz (40 g) |
Unit Type of Package 2 | BB1 |
Number of Units in Package 2 | 10 |
Package 2 Height | 1.18 in (3 cm) |
Package 2 Width | 7.48 in (19 cm) |
Package 2 Length | 11.42 in (29 cm) |
Package 2 Weight | 14.32 oz (406 g) |
Unit Type of Package 3 | S02 |
Number of Units in Package 3 | 100 |
Package 3 Height | 5.91 in (15 cm) |
Package 3 Width | 11.81 in (30 cm) |
Package 3 Length | 15.75 in (40 cm) |
Package 3 Weight | 10.02 lb(US) (4.545 kg) |
Warranty | 18 months |
---|
