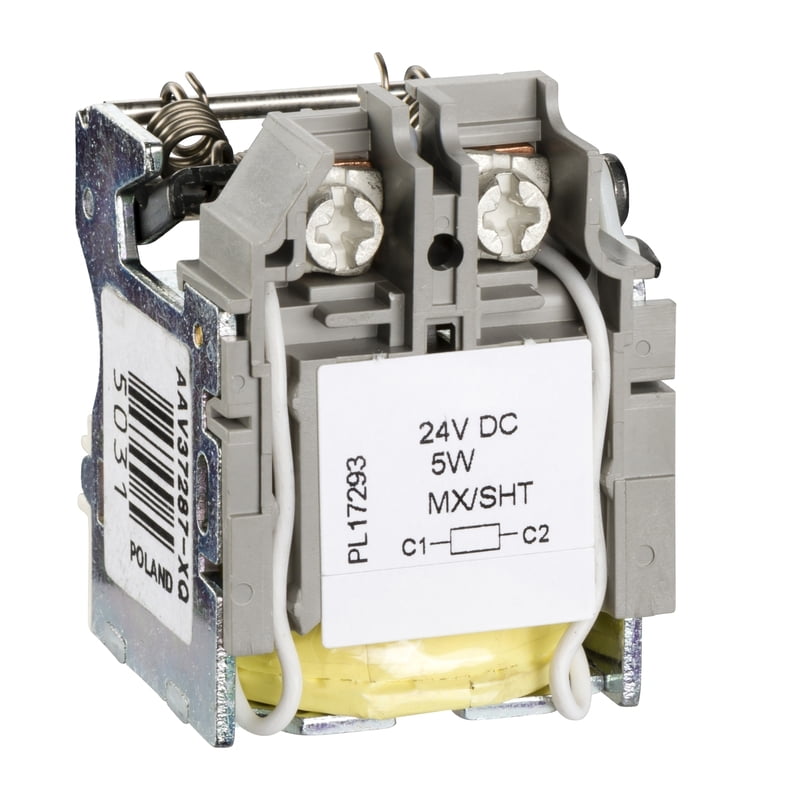

LV429390 MX 24V DC Shunt Relerease
- Quantity
Product Details
PowerPact Multistandard, EasyPact CVS, rated voltage 24 VDC
Main
Complementary
Packing Units
Contractual warranty
| Range | ComPacT |
|---|---|
| Range of product | ComPact NSX100...250 ComPacT NSX100...250 new generation ComPact NSX400...630 ComPacT NSX400...630 new generation ComPact NSX100...250 DC ComPacT NSX100...250 DC new generation ComPact NSX100...250 DC PV ComPacT NSX100...250 DC PV new generation ComPact NSX400...630 DC ComPacT NSX400...630 DC new generation ComPact NSX400...630 DC PV ComPacT NSX400...630 DC PV new generation |
| Device short name | MX |
| Product or component type | Voltage release |
| Device application | Control |
| Voltage release type | Opening coil Shunt trip release |
| [Uc] control circuit voltage | 24 V DC |
| Range compatibility | ComPacT new generation (ComPacT NSX new generation) ComPacT new generation (ComPacT NSX DC new generation) ComPact (ComPact NSX) ComPact (ComPact NSX DC) EasyPact (EasyPact CVS) PowerPact (PowerPact Multistandard) |
| Operating threshold | 0.7...1.1 x Un opening |
|---|---|
| Response time | 50 ms |
| control signal type | Impulse Maintained |
| impulse duration | >= 20 ms |
| Supply inrush power | 10 W |
| Auxiliary connection terminal | Spring 0.5…1.5 mm² (AWG 20...AWG 16) |
| Wire stripping length | 7 mm |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.2 cm |
| Package 1 Width | 4 cm |
| Package 1 Length | 8.1 cm |
| Package 1 Weight | 130 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9 cm |
| Package 2 Width | 14.7 cm |
| Package 2 Length | 22.2 cm |
| Package 2 Weight | 1.4 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 8.84 kg |
| Warranty | 18 months |
|---|
