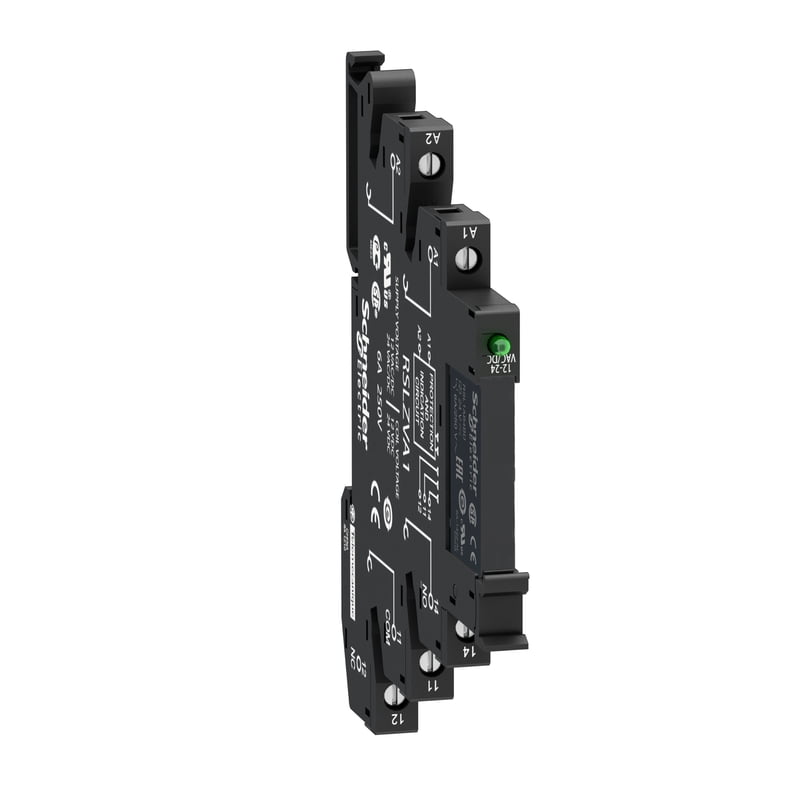

RSL1PVPU SLIM Relay+Socket
- delivery time60 days
- Quantity
Product Details
pre assembled, 6A, 1CO, with LED, screw connectors, 230V AC/DC
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | Interface relay |
| Product or component type | Pre-assembled plug-in relay with socket |
| device short name | RSL |
| Contacts type and composition | 1 C/O |
| contact operation | Standard |
| [Uc] control circuit voltage | 60 V DC |
| [Ithe] conventional enclosed thermal current | 6 A at -40…55 °C |
| Status LED | With |
| Shape of pin | Flat (PCB type) |
| Fixing mode | Plastic compression spring |
|---|---|
| Average resistance | 20500 Ohm network: DC at 23 °C +/- 10 % |
| [Ui] rated insulation voltage | 250 V conforming to IEC 277 V conforming to cUL |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC |
| Contacts material | Silver alloy (AgSnO2) |
| [Ie] rated operational current | 6 A 1 C/O (AC-1/DC-1) conforming to IEC/UL |
| Minimum switching current | 100 mA |
| Maximum switching voltage | 277 V |
| Minimum switching voltage | 12 V |
| Maximum switching capacity | 1500 VA 150 W |
| Minimum switching capacity | 120 mW |
| Operating rate | <= 72000 cycles/hour no-load <= 360 cycles/hour under load |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 60000 cycles for resistive load, 6 A at 250 V, AC-1 |
| Operating time | 5 ms reset 12 ms |
| Reset time | 20 ms |
| Marking | CE |
| Protection category | RT III |
| Test levels | Level A group mounting |
| Operating position | Any position |
| height | 78.6 mm |
| Width | 6.2 mm |
| Depth | 95 mm |
| Terminals description ISO n°1 | (11-12-14)OC (A1-A2)CO |
| Sale per indivisible quantity | 10 |
| Net weight | 0.029 kg |
| Load current | 6 A at 250 V AC 0.5 mm mounting distance |
| Average coil consumption | 0.17 W, DC |
| Drop-out voltage threshold | >= 0.05 Uc |
| contact terminal arrangement | Separate |
| Connections - terminals | Screw connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end |
| Tightening torque | < 0.5 N.m for M2.5 screw(s) |
| Safety reliability data | B10d = 60000 |
| control type | Without push-button |
| mounting support | 35 mm symmetrical DIN rail |
| Device presentation | Complete product |
| Input voltage | 230 V AC/DC (input voltage limit: 184...264.5 V) |
|---|---|
| Dielectric strength | 1000 V AC between contacts 4000 V AC between coil and contact |
| standards | IEC 61810-1 UL 508 CSA C22.2 No 14 |
| product certifications | GOST CSA UL |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 10 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles not operating conforming to IEC 60068-2-6 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles in operation conforming to IEC 60068-2-6 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Shock resistance | 10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 5 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -40…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.7 cm |
| Package 1 Width | 9.6 cm |
| Package 1 Length | 7.9 cm |
| Package 1 Weight | 28.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 7.0 cm |
| Package 2 Width | 10.3 cm |
| Package 2 Length | 8.5 cm |
| Package 2 Weight | 311.0 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 300 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 9.822 kg |
| Warranty | 12 months |
|---|
