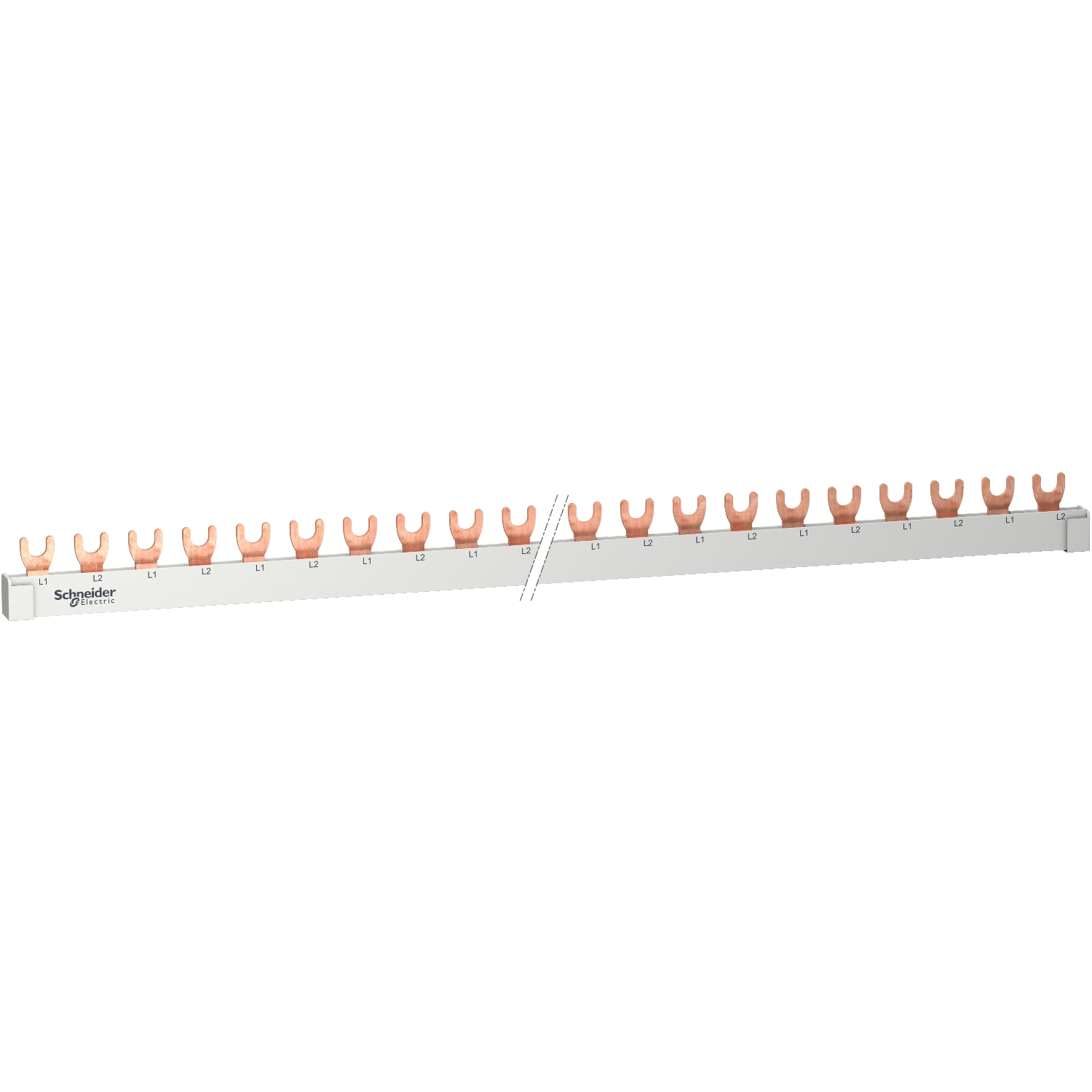

R9XFH157 MCB Shortling 1way Patti
- delivery time60 days
- Quantity
Product Details
| Range | Resi9 |
|---|---|
| Product or component type | Comb busbar |
| Mounting mode | Horizontal |
| accessory / separate part category | Connection accessory |
| Lines description | 1L |
| Length in 18 mm modules | 57 |
| Number of ways | 57 ways 1 L |
|---|---|
| Poles configuration for 1 way | 1 x 1P |
| Connection pitch | 18 mm |
| Connector type | Fork |
| Distance between way | 18 mm |
| Marking | L |
| insulation | Insulated |
| Device presentation | Cuttable |
| [Ie] rated operational current | 63 A at 40 °C |
| [Ue] rated operational voltage | 230 V AC Ph/N |
| [Ui] rated insulation voltage | 500 V AC |
| Mounting location | Bottom on biconnect |
| 9 mm pitches | 114 |
| Width | 1000 mm |
| Colour | White (RAL 9003) |
| Range compatibility | Acti 9 Acti9 K60 Resi9 Resi9 MCB Resi9 Resi9 RCBO Resi9 Resi9 RCCB Resi9 Resi9 SWITCH |
| Standards | IEC 60947-7-1 IEC 61439-2 |
|---|---|
| Product certifications | CE |
| Fire resistance | 960 °C ( 30 s ) conforming to IEC 60695-2-1 |
| Pollution degree | 3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.5 cm |
| Package 1 Width | 1.5 cm |
| Package 1 Length | 101.5 cm |
| Package 1 Weight | 206 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 5.5 cm |
| Package 2 Width | 106.5 cm |
| Package 2 Length | 9 cm |
| Package 2 Weight | 1.199 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 270 |
| Package 3 Height | 53 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 113 kg |
| Warranty | 18 months |
|---|
