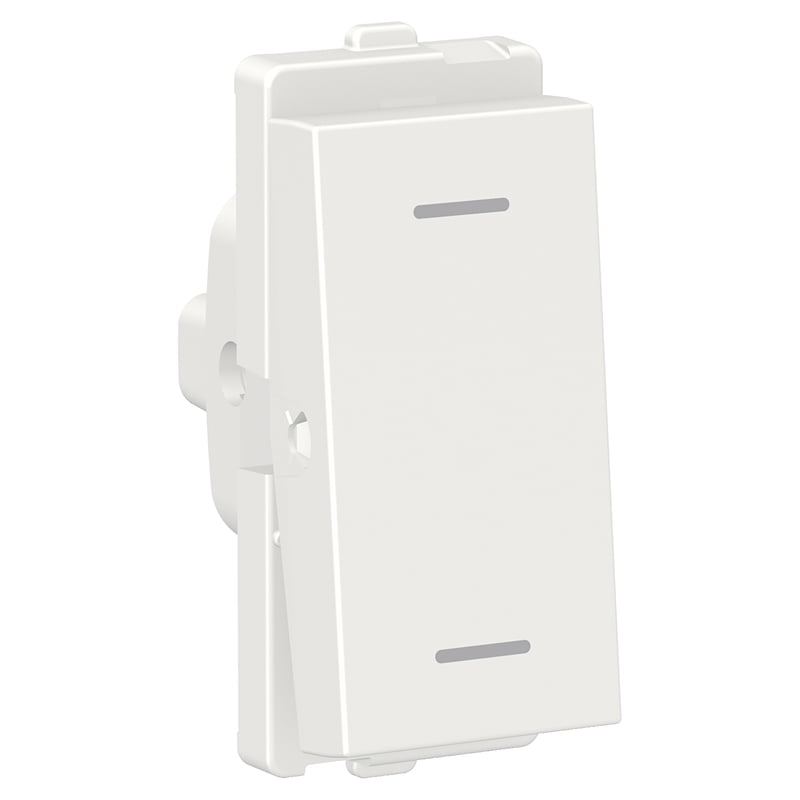

Schneiderm Clipsal X 10A 2 Way Switch
MainRange | Clipsal |
---|
Product or component type | Switch |
---|
Device application | Control |
---|
Colour tint | White |
---|
Type of packing | Group |
---|
Colour tint | White |
---|
ComplementaryDevice presentation | Mechanism |
---|
Technology type | Electromechanical |
---|
Number of rocker | 1 |
---|
Device mounting | Flush |
---|
Switch function | 2-way |
---|
control type | Rocker |
---|
Rated current | 10 A at 250 V AC 50 Hz |
---|
Number of modules | 1 |
---|
Material | PC: front cover PA6: back cover |
---|
Connections - terminals | Shrouded terminals |
---|
Width | 21 mm |
---|
height | 48 mm |
---|
Depth | 37 mm |
---|
Resistance to chemical agents | Not resistant to alcohols Not resistant to cleaning agent Not resistant to thinner |
---|
EnvironmentAmbient air temperature for operation | -5…35 °C |
---|
Ambient air temperature for storage | -5…35 °C |
---|
Relative humidity | 0…95 % |
---|
Environmental characteristic | Indoor use |
---|
product certifications | ISI |
---|
standards | IS 3854 |
---|
IP degree of protection | IP20 |
---|
Packing UnitsUnit Type of Package 1 | PCE |
---|
Number of Units in Package 1 | 1 |
---|
Package 1 Height | 3.7 cm |
---|
Package 1 Width | 5.1 cm |
---|
Package 1 Length | 2.2 cm |
---|
Package 1 Weight | 18 g |
---|
Unit Type of Package 2 | BB1 |
---|
Number of Units in Package 2 | 240 |
---|
Package 2 Height | 24.5 cm |
---|
Package 2 Width | 26 cm |
---|
Package 2 Length | 33 cm |
---|
Package 2 Weight | 4.45 kg |
---|
