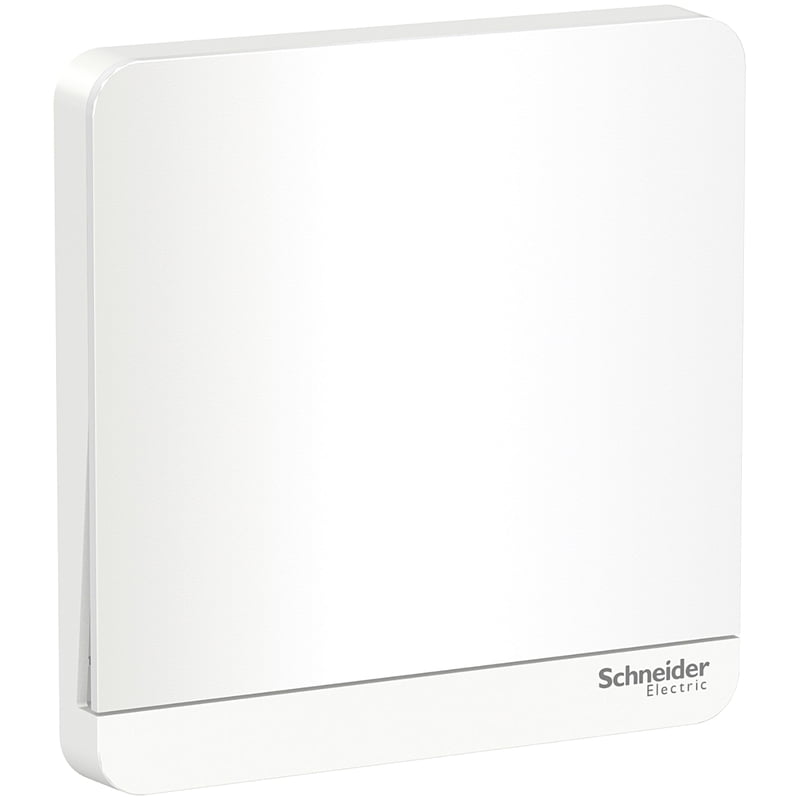

E8331BPL1_GH_G8 10A 1G BP SW
- delivery time60 days
- Quantity
Product Details
| Product or component type | Switch |
|---|---|
| Device application | Control |
| Load type | Resistive Inductive Incandescent lamp Fluorescent lamp |
| Colour tint | White |
| Colour tint | White |
| Device presentation | Complete product |
|---|---|
| Rated current | 16 AX at 250 V AC 50/60 Hz |
| Switch function | 1-pole 1-way |
| Number of gangs | 1 gang |
| Number of rocker | 1 |
| Clamping connection capacity | 3 x 2.5 mm² for solid cable(s) 3 x 2.5 mm² for stranded cable(s) 4 x 1.5 mm² for solid cable(s) 4 x 1.5 mm² for stranded cable(s) |
| Connections - terminals | Brass terminal |
| Material | Polycarbonate: grid plate Polycarbonate: base Polycarbonate: dolly Polycarbonate: frame Polycarbonate + GF 20 %: actuator |
| Device mounting | Surface Flush |
| Width | 86 mm |
| height | 86 mm |
| Depth | 34.2 mm |
| IP degree of protection | IP20 |
|---|---|
| Maximum ambient air temperature for operation | 45 °C |
| Operating altitude | 2000 m |
| Relative humidity | 0…95 % |
| Environmental characteristic | UV resistant |
| standards | MS IEC 60669-1 SS 227-1 BS EN 60669-1 IEC 60669-1 IS 3854 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.4 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 81.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 19.0 cm |
| Package 2 Length | 19.5 cm |
| Package 2 Weight | 810.0 g |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 21.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 39.5 cm |
| Package 3 Weight | 4.86 kg |
