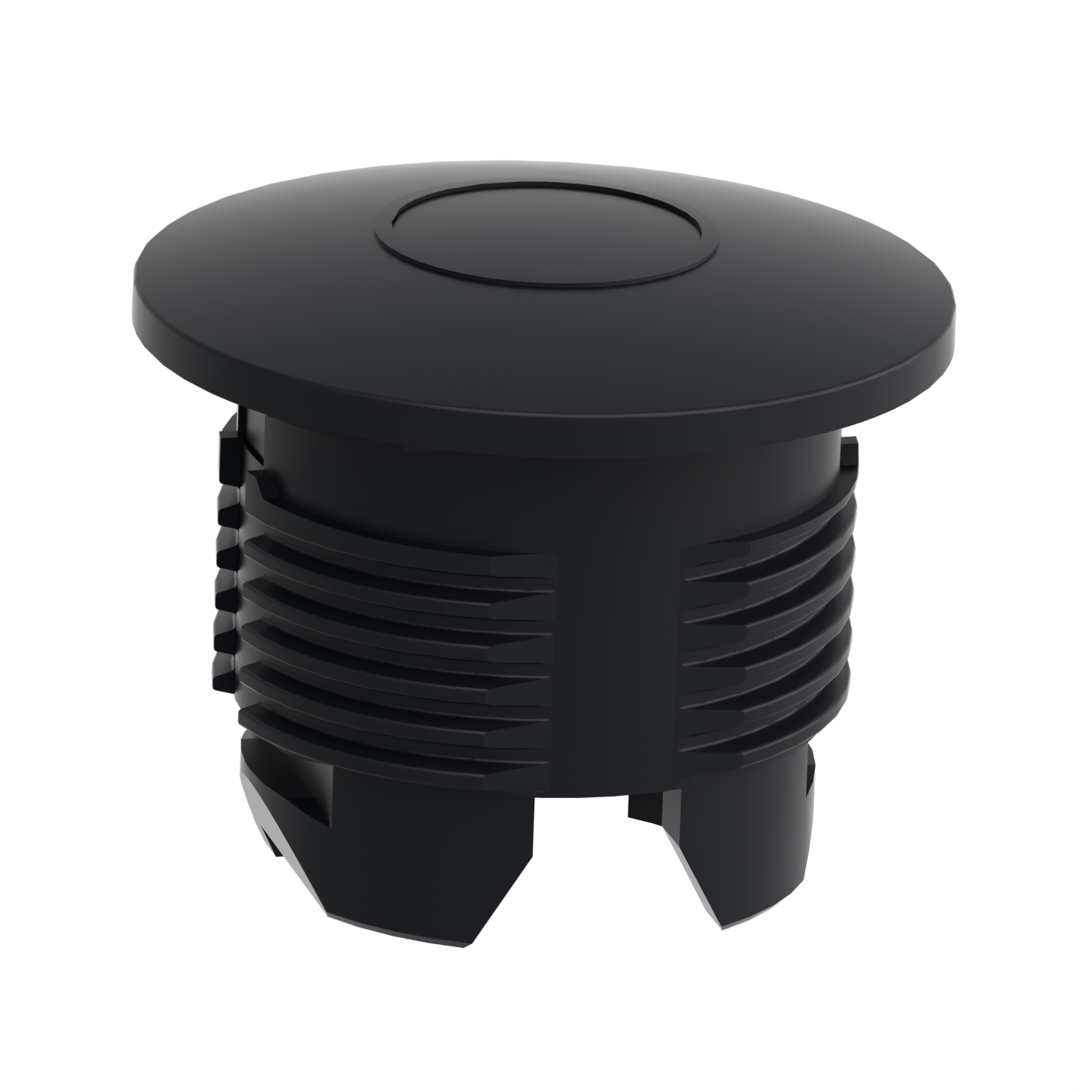

ZB5SZ3
- delivery time60 days
- Quantity
Range of product | Harmony XB5 Harmony XB4 |
---|---|
accessory / separate part type | Blanking plug |
accessory / separate part category | Installation accessories |
Accessory / separate part destination | Ø 22 mm cut-outs for circular heads |
Material | Plastic |
---|---|
bezel material | Dark grey plastic |
Head type | Standard |
Colour | Dark grey |
Device composition | Nut Blanking plug |
Sale per indivisible quantity | 10 |
Net weight | 0.009 kg |
Shape of signaling unit head | Round |
Operator profile | Flush |
Station name | XALD 2...5 cut-outs XALK 2...5 cut-outs |
NEMA degree of protection | NEMA 13 NEMA 4X |
---|---|
IP degree of protection | IP66 conforming to IEC 60529 IP67 IP69 IP69K |
IK degree of protection | IK03 conforming to IEC 50102 |
Standards | JIS C8201-5-1 EN/IEC 60947-1 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-5-4 UL 508 JIS C8201-1 |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 2.3 cm |
Package 1 Width | 2.8 cm |
Package 1 Length | 2.8 cm |
Package 1 Weight | 8 g |
Unit Type of Package 2 | BB1 |
Number of Units in Package 2 | 10 |
Package 2 Height | 7 cm |
Package 2 Width | 7 cm |
Package 2 Length | 8.8 cm |
Package 2 Weight | 97 g |
Unit Type of Package 3 | S03 |
Number of Units in Package 3 | 400 |
Package 3 Height | 30 cm |
Package 3 Width | 30 cm |
Package 3 Length | 40 cm |
Package 3 Weight | 4.368 kg |
Warranty | 18 months |
---|
