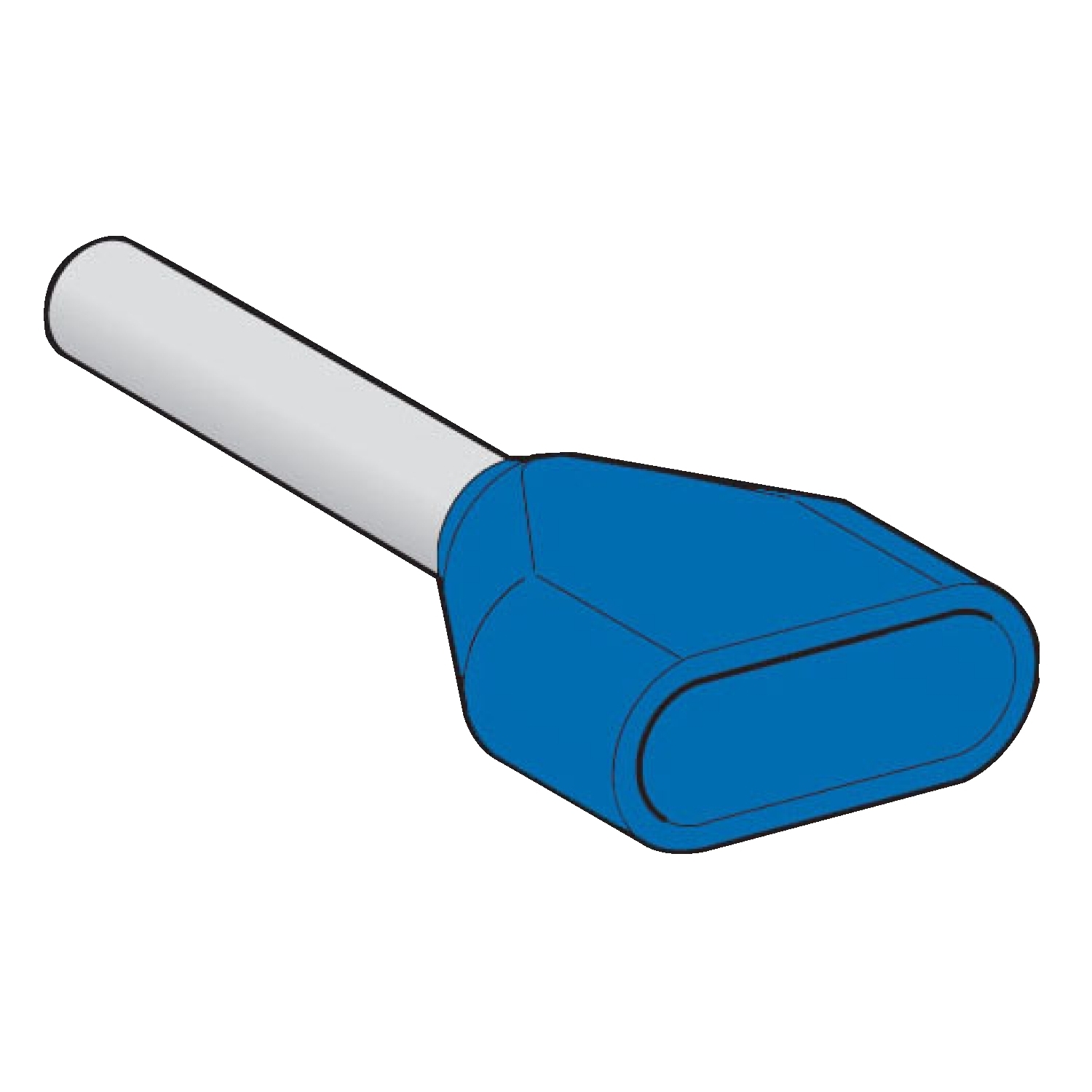

AZ5DE007

Main

Range of Product	Linergy
Product or Component Type	Cable end
cable end size	Medium
Standards	NF C 63-023
Type of Packing	Dispenser pack
Quantity per Set	5 sets of 100
Cable cross section	0.00 in² (0.75 mm²)

Complementary

Cable end type	Twin conductor
Additional information	Without marker tag holder
Color	Blue
bezel material	Halogen-free plastic
Tube material	Copper ISO 1337
Number of cables	2
AWG Gauge	AWG 20
bezel size	Ø 2.8 x 5 mm
Tube diameter	0.08 in (2 mm)
Length	0.59 in (15 mm)
Tube length	0.31 in (8 mm)
Net Weight	0.29 lb(US) (0.13 kg)

Environment

Product Certifications	CCSAus
Ambient Air Temperature for Operation	-4…221 °F (-20…105 °C)

Ordering and shipping details

Category	22621-IEC PANEL ACCESSORIES
Discount Schedule	I
GTIN	3389110515794
Returnability	No
Country of origin	DE

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	0.16 in (0.400 cm)
Package 1 Width	0.16 in (0.400 cm)
Package 1 Length	0.55 in (1.400 cm)
Package 1 Weight	0.00 oz (0.100 g)
Unit Type of Package 2	BB1
Number of Units in Package 2	500
Package 2 Height	5.12 in (13.000 cm)
Package 2 Width	2.76 in (7.000 cm)
Package 2 Length	4.92 in (12.500 cm)
Package 2 Weight	4.73 oz (134.000 g)
Unit Type of Package 3	S04
Number of Units in Package 3	20000
Package 3 Height	11.81 in (30.000 cm)
Package 3 Width	15.75 in (40.000 cm)
Package 3 Length	23.62 in (60.000 cm)
Package 3 Weight	13.70 lb(US) (6.214 kg)

Contractual warranty

Warranty	18 months
