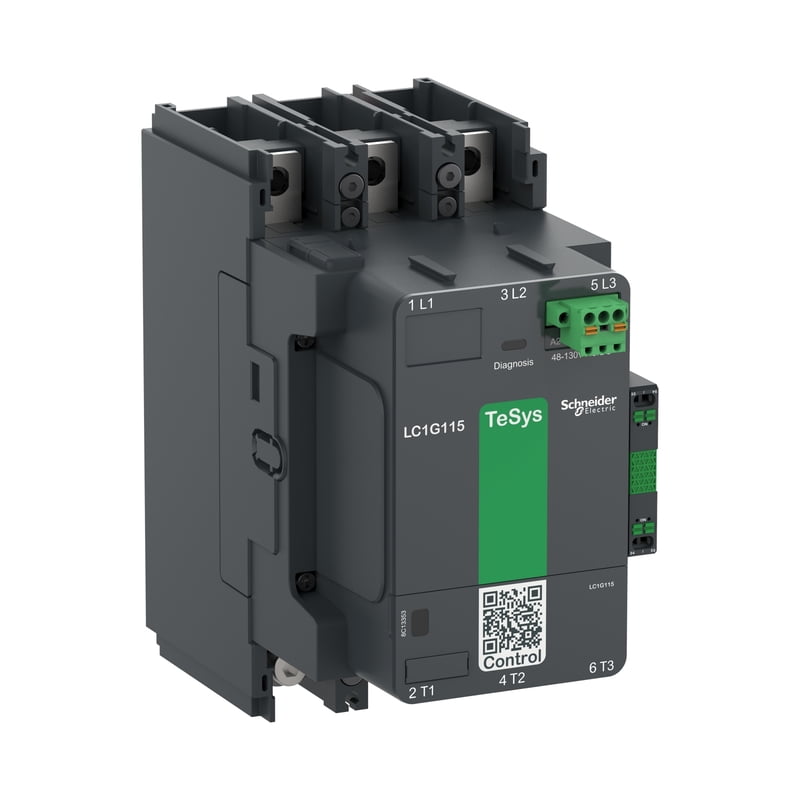

LC1G115KUEN
- Quantity
Product Details
Main
Complementary
Environment
Ordering and shipping details
Packing Units
| Range | TeSys |
|---|---|
| Range of Product | TeSys Giga |
| Product or Component Type | Contactor |
| Device short name | LC1G |
| contactor application | Power switching Motor control |
| utilisation category | AC-1 AC-3 AC-3e AC-4 AC-5a AC-5b AC-6a AC-6b AC-8a AC-8b DC-1 DC-3 DC-5 |
| Poles description | 3P |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz <= 460 V DC |
| [Ie] rated operational current | 250 A 104 °F (40 °C)) <= 1000 V AC-1 115 A 140 °F (60 °C)) <= 400 V AC-3 |
| [Uc] control circuit voltage | 100...250 V AC 50/60 Hz 100...250 V DC |
| Control circuit voltage limits | Operational 0.8 Uc Min...1.1 Uc Max 140 °F (60 °C)) Drop-out 0.1 Uc Max...0.45 Uc Min 140 °F (60 °C)) |
| [Uimp] rated impulse withstand voltage | 8 kV |
|---|---|
| Overvoltage category | III |
| [Ith] conventional free air thermal current | 250 A 104 °F (40 °C) |
| Rated breaking capacity | 1040 A 440 V |
| [Icw] rated short-time withstand current | 1.1 kA - 10 s 0.64 kA - 30 s 0.52 kA - 1 min 0.4 kA - 3 min 0.32 kA - 10 min |
| Associated fuse rating | 125 A aM <= 440 V motor 125 A aM <= 690 V motor 315 A gG <= 690 V |
| Average impedance | 0.00018 Ohm |
| [Ui] rated insulation voltage | 1000 V |
| Power dissipation per pole | 10 W AC-1 - Ith 250 A 3 W AC-3 - Ith 115 A |
| Compatibility code | LC1G |
| Pole contact composition | 3 NO |
| Auxiliary contact composition | 1 NO + 1 NC |
| Motor power kW | 30 kW 230 V AC 50/60 Hz AC-3e) 55 kW 400 V AC 50/60 Hz AC-3e) 55 kW 415 V AC 50/60 Hz AC-3e) 75 kW 440 V AC 50/60 Hz AC-3e) 75 kW 500 V AC 50/60 Hz AC-3e) 75 kW 690 V AC 50/60 Hz AC-3e) 30 kW 230 V AC 50/60 Hz AC-3) 55 kW 400 V AC 50/60 Hz AC-3) 55 kW 415 V AC 50/60 Hz AC-3) 75 kW 440 V AC 50/60 Hz AC-3) 75 kW 500 V AC 50/60 Hz AC-3) 75 kW 690 V AC 50/60 Hz AC-3) 30 kW 230 V AC 50/60 Hz AC-4) 55 kW 400 V AC 50/60 Hz AC-4) 55 kW 415 V AC 50/60 Hz AC-4) 65 kW 440 V AC 50/60 Hz AC-4) 65 kW 500 V AC 50/60 Hz AC-4) 75 kW 690 V AC 50/60 Hz AC-4) |
| Maximum Horse Power Rating | 30 hp 200/208 V at 60 Hz 40 hp 230/240 V at 60 Hz 75 hp 460/480 V at 60 Hz 100 hp 575/600 V at 60 Hz |
| Irms rated making capacity | 1560 A 440 V |
| Coil technology | Built-in bidirectional peak limiting |
| Mechanical durability | 8 Mcycles |
| inrush power in VA (50/60 Hz, AC) | 540 VA |
| inrush power in W (DC) | 380 W |
| hold-in power consumption in VA (50/60 Hz, AC) | 12.4 VA |
| hold-in power consumption in W (DC) | 7.8 W |
| Operating time | 40...70 ms closing 15...50 ms opening |
| Maximum operating rate | 600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1 150 cyc/h AC-4 |
| Connections - terminals | Power circuit bar 2 25 x 6 mm Power circuit lugs-ring terminals 1 0.29 in² (185 mm²) Power circuit bolted connection Control circuit push-in 1 0.00…0.00 in² (0.2…2.5 mm²) solid stranded without cable end Control circuit push-in 1 0.00…0.00 in² (0.25…2.5 mm²) flexible with cable end Control circuit push-in 2 0.00…0.00 in² (0.5…1.0 mm²) with cable end Control circuit push-in 0.00…0.00 in² (0.75…2.5 mm²) solid stranded without cable end Control circuit push-in 0.00…0.00 in² (0.75…2.5 mm²) flexible with cable end |
| Connection pitch | 1.38 in (35 mm) |
| Mounting Support | Plate |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 |
| Product Certifications | CB Scheme CCC cULus EAC CE UKCA EU-RO-MR by DNV-GL |
| Tightening torque | 159.31 lbf.in (18 N.m) |
| Height | 7.60 in (193 mm) |
| Width | 4.25 in (108 mm) |
| Depth | 7.60 in (193 mm) |
| Net Weight | 7.94 lb(US) (3.6 kg) |
| IP degree of protection | IP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106 |
|---|---|
| Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) |
| Ambient Air Temperature for Storage | -76…176 °F (-60…80 °C) |
| Mechanical robustness | Vibrations 5…300 Hz 2 gn contactor open Vibrations 5…300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed |
| color | Dark grey |
| Protective treatment | TH |
| Permissible ambient air temperature around the device | -40…158 °F (-40…70 °C) at Uc |
| Category | 22329-TESYS GIGA CONTACTORS |
|---|---|
| Discount Schedule | I12 |
| GTIN | 3606481921925 |
| Returnability | Yes |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.65 in (24.5 cm) |
| Package 1 Width | 9.06 in (23.0 cm) |
| Package 1 Length | 15.16 in (38.5 cm) |
| Package 1 Weight | 10.50 lb(US) (4.761 kg) |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 29.53 in (75 cm) |
| Package 2 Width | 23.62 in (60 cm) |
| Package 2 Length | 31.50 in (80 cm) |
| Package 2 Weight | 85.03 lb(US) (38.57 kg) |
