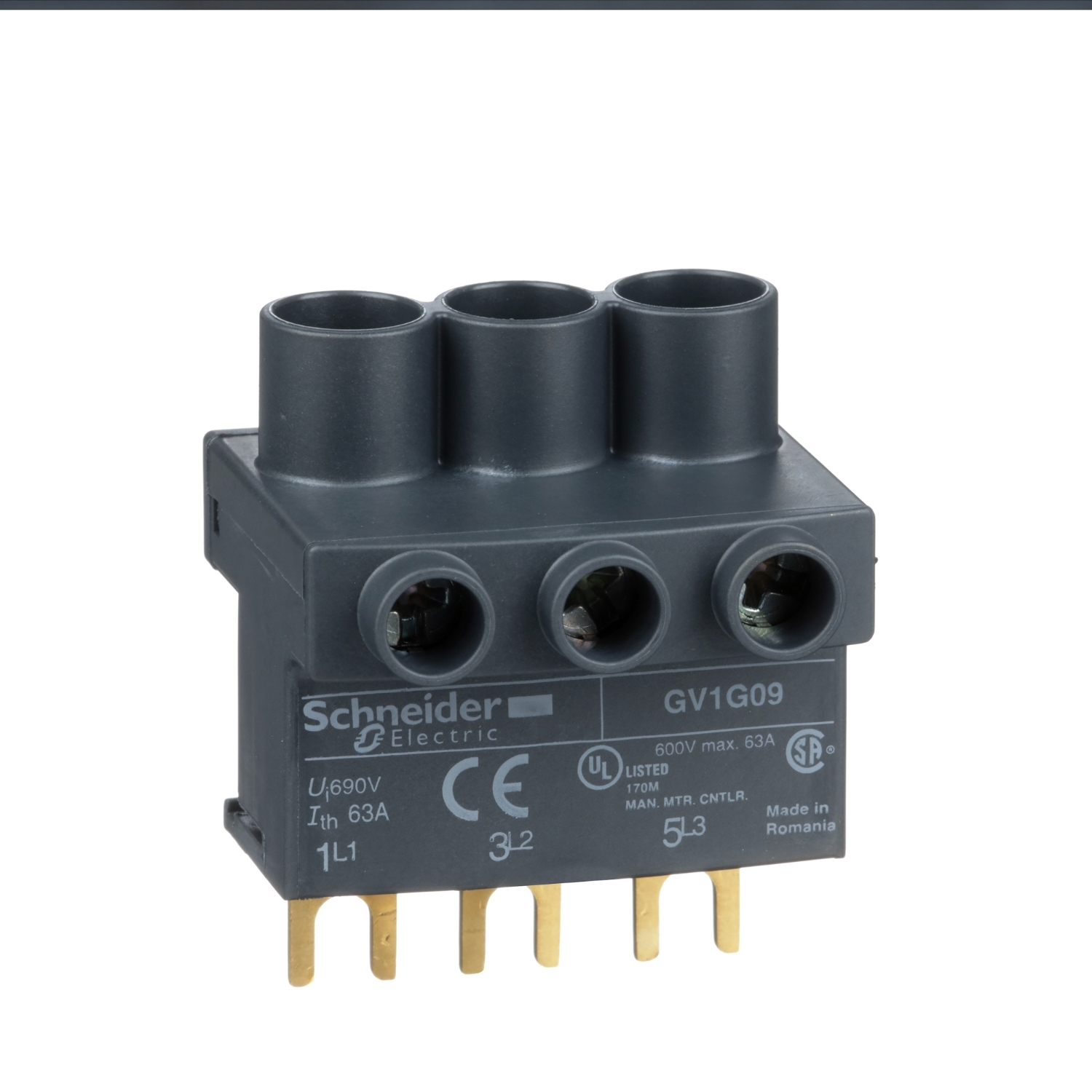

GV1G09
- delivery time60 days
- Quantity
Product Details
Main
Complementary
Environment
Packing Units
Contractual warranty
| Range | Linergy |
|---|---|
| Product name | FT |
| Device short name | GV1G |
| Product or component type | Terminal block |
| accessory / separate part category | Connection accessory |
| Poles description | 3P |
| Range compatibility | TeSys GV2 TeSys Deca TeSys U TeSys LS1 |
| [Ie] rated operational current | 63 A |
|---|---|
| Mounting location | Top |
| IP degree of protection | IP20 conforming to IEC 60529 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-1 |
| Connections - terminals | Screw clamp terminals 1 solid AWG 4 Screw clamp terminals 1 cable(s) 1.5…16 mm² flexible with cable end Screw clamp terminals 1 cable(s) 1.5…16 mm² flexible without cable end Screw clamp terminals 1 cable(s) 1.5…25 mm² solid Screw clamp terminals 2 cable(s) 1.5…4 mm² flexible with cable end Screw clamp terminals 2 cable(s) 1.5…6 mm² solid Screw clamp terminals 2 cable(s) 1.5…4 mm² flexible without cable end Screw clamp terminals 1 flexible AWG 4 |
| Tightening torque | 1.7 N.m - on screw clamp terminals 2.2 N.m - on connector |
| Net weight | 0.04 kg |
| product certifications | CE UKCA |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4 cm |
| Package 1 Width | 5 cm |
| Package 1 Length | 5.5 cm |
| Package 1 Weight | 48 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 70 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.678 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1120 |
| Package 3 Height | 77 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 60 cm |
| Package 3 Weight | 68.18 kg |
| Warranty | 18 months |
|---|
