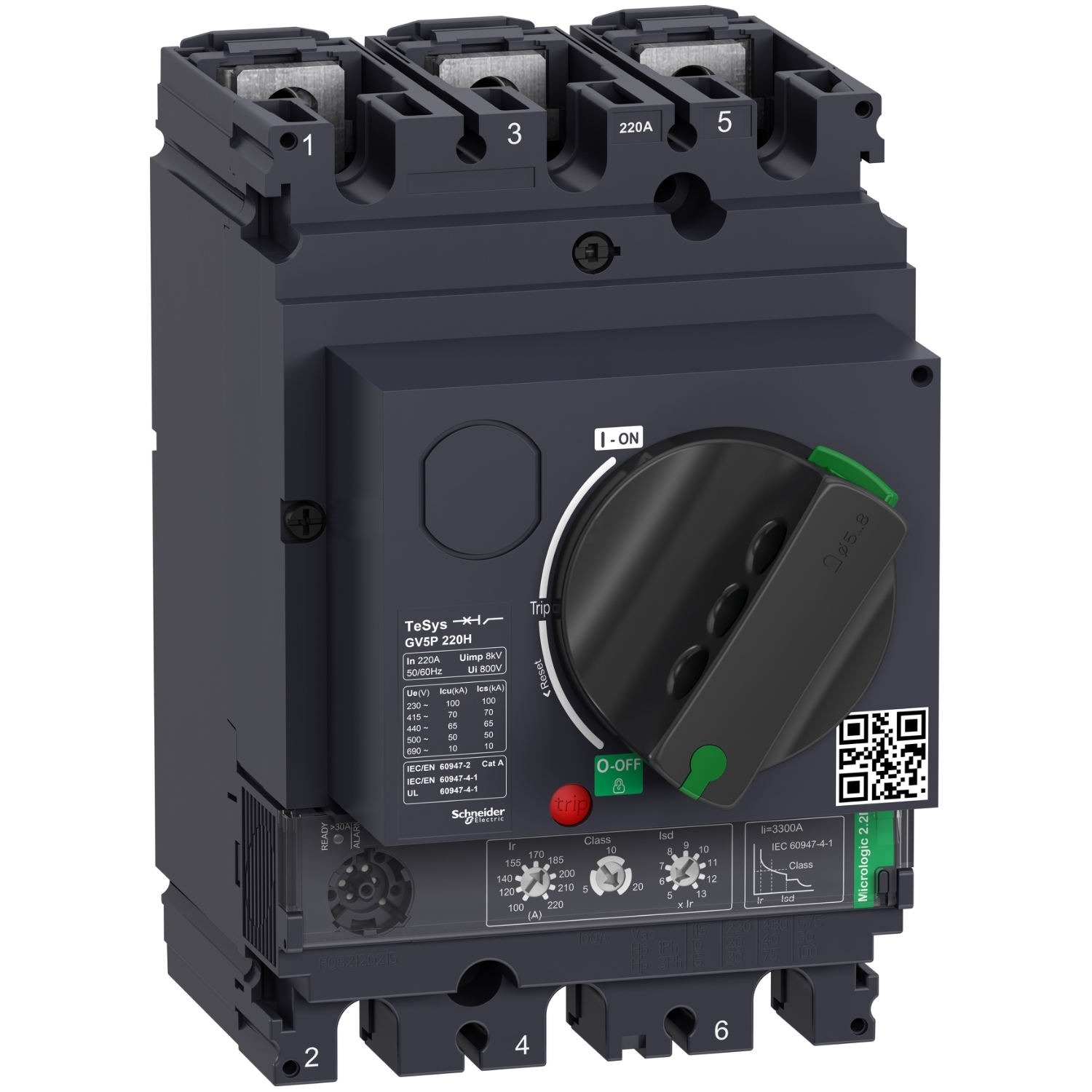

GV5P220H
- delivery time60 days
- Quantity
Product Details
Main
Complementary
Environment
Packing Units
Contractual warranty
| Range of product | TeSys GV5 |
|---|---|
| Range | TeSys |
| Device short name | GV5P |
| Product name | TeSys GV5 TeSys Giga |
| Product or component type | Motor circuit breaker |
| Device application | Motor protection |
| Trip unit technology | Electronic |
| Poles description | 3P |
|---|---|
| Utilisation category | Category A conforming to IEC 60947-2 |
| Motor power kW | 90…110 kW at 400/415 V AC 50/60 Hz 110 kW at 500 V AC 50/60 Hz 110…132 kW at 660/690 V AC 50/60 Hz |
| Breaking capacity | 70 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type | Direct rotary handle |
| [In] rated current | 220 A at 65 °C |
| Magnetic tripping current | 3300 A |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ith] conventional free air thermal current | 220 A conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Power dissipation per pole | 17.6 W |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles for AC-3 at 400/415 V In |
| Maximum operating rate | 25 cyc/h |
| Rated duty | Continuous |
| Connection pitch | 35 mm without spreaders |
| Connections - terminals | Bars Lugs |
| Tightening torque | 15 N.m M8 screw type |
| Mechanical robustness | Vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6 Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| height | 161 mm |
| Width | 105 mm |
| Depth | 155 mm |
| Net weight | 2.6 kg |
| Colour | Anthracite (RAL 7016) |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| standards | EN/IEC 60947-1 EN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 |
|---|---|
| product certifications | IECEE CB Scheme EAC (pending) |
| Climatic withstand | Conforming to IACS E10 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for storage | -50…85 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Operating altitude | 5000 m |
| Ambient air temperature for operation | -25…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19.1 cm |
| Package 1 Width | 11.8 cm |
| Package 1 Length | 17.0 cm |
| Package 1 Weight | 2.9 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 18.1 kg |
| Warranty | 18 months |
|---|
