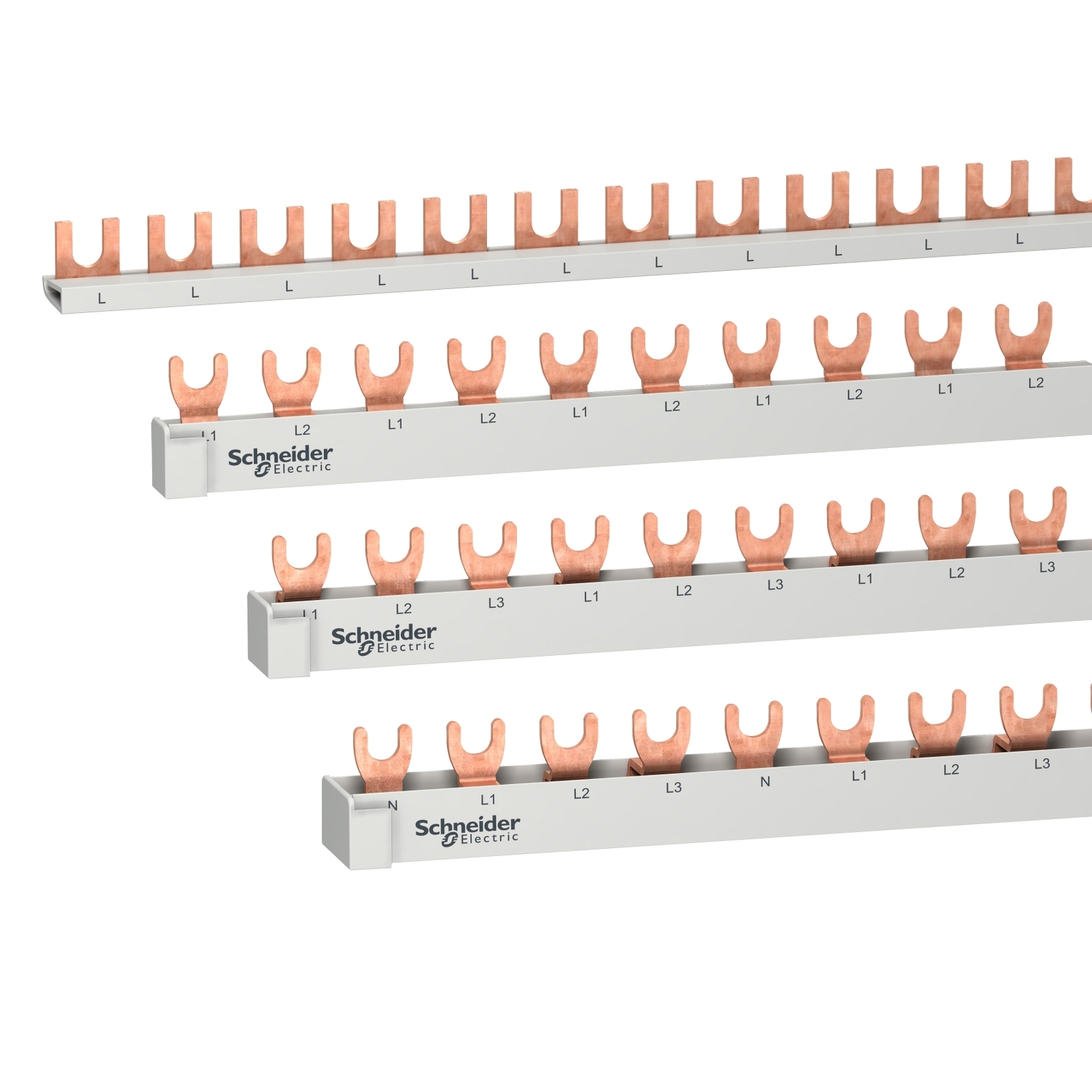

R9XFH357 Busbar 3p 57mod
- delivery time60 days
- Quantity
Range | Resi9 |
---|---|
Product or component type | Comb busbar |
Mounting mode | Horizontal |
accessory / separate part category | Connection accessory |
Lines description | 3L |
Length in 18 mm modules | 57 |
Number of ways | 19 ways 3 L |
---|---|
Poles configuration for 1 way | 1 x 3P |
Connection pitch | 18 mm |
Connector type | Fork |
Distance between way | 54 mm |
Marking | L1 L2 L3 |
insulation | Insulated |
Device presentation | Cuttable |
[Ie] rated operational current | 63 A at 40 °C |
[Ue] rated operational voltage | 400 V AC Ph/Ph |
[Ui] rated insulation voltage | 500 V AC |
Mounting location | Bottom on biconnect |
9 mm pitches | 114 |
Width | 1000 mm |
Colour | White (RAL 9003) |
Range compatibility | Acti 9 (Acti9 K60) Resi9 (Resi9 MCB) Resi9 (Resi9 RCBO) Resi9 (Resi9 RCCB) Resi9 (Resi9 SWITCH) |
Standards | IEC 60947-7-1 IEC 61439-2 |
---|---|
Product certifications | CE |
Fire resistance | 960 °C ( 30 s ) conforming to IEC 60695-2-1 |
Pollution degree | 3 |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 2.6 cm |
Package 1 Width | 1.6 cm |
Package 1 Length | 101.7 cm |
Package 1 Weight | 429 g |
Unit Type of Package 2 | BB1 |
Number of Units in Package 2 | 5 |
Package 2 Height | 5.5 cm |
Package 2 Width | 107 cm |
Package 2 Length | 8.8 cm |
Package 2 Weight | 2.321 kg |
Unit Type of Package 3 | P12 |
Number of Units in Package 3 | 270 |
Package 3 Height | 55 cm |
Package 3 Width | 80 cm |
Package 3 Length | 120 cm |
Package 3 Weight | 137.334 kg |
Warranty | 18 months |
---|
